2024 Argo Xplorer XR 500 SE Graphite Grey

Videos
Call for Price
Overview

Introduce your thumb to a throttle.

Power down the smartphone in your hand. Skip it across the water like a flat rock if you’d prefer. It’s time you rev up a new 2024 Xplorer XR 500 SE and let your thumb experience a throttle instead. Hit the trail and learn why outdoor enthusiasts, young and old, love riding and riding and riding.
The Xplorer XR 500 SE provides durability and reliability with high-quality standard features, including our powerful 443cc liquid-cooled engine with EFI, performance clutching, engine braking, 24" tires with aluminum rims, a durable 3,000 lb. winch and premium painted plastic body panels. Go make a lifelong connection with reality and mud. No Wifi required.

Specifications
Model
Xplorer
Year
2024
Sale Type
New
Manufacturer
Argo
Color
Graphite Grey
WIDTH
48.4 IN (1,230 MM)
HEIGHT
47.6 IN (1,210 MM)
LENGTH
75 IN (1,905 MM)
IGNITION
ECU
REAR RACK
150 LB (68 KG)
WHEELBASE
48.2 IN (1,225 MM)
DRY WEIGHT
627 LBS (284 KG)
FOOT BRAKE
STANDARD
FRONT RACK
75 LB (34 KG)
WET WEIGHT
670 LBS (304 KG)
FUEL SYSTEM
EFI
SEAT HEIGHT
33.2 IN (843 MM)
BRAKE - REAR
HYDRAULIC ​DISC
DISPLACEMENT
443CC
START METHOD
ELECTRIC START
BORE X STROKE
89 X 71.2 MM
BRAKE - FRONT
DUAL HYDRAULIC ​​DISC
ENGINE STROKE
4-STROKE
COOLING SYSTEM
LIQUID
TOWING CAPACITY
985 LBS (447 KG)
GROUND CLEARANCE
10.2 IN (260 MM)
OVER RIDE BUTTON
STANDARD
COMPRESSION RATIO
9.1:1
SUSPENSION - REAR
INDEPENDENT DOUBLE A-ARM
TIRE SIZE (FRONT)
AT24X8-12 (KENDA)
TRANSMISSION TYPE
CVT AUTOMATIC
FUEL TANK CAPACITY
4.0 GAL (15.0 L)
SUSPENSION - FRONT
INDEPENDENT DOUBLE A-ARM
VALVE CONFIGURATION
4 VALVE
CYLINDER ARRANGEMENT
SOHC SINGLE-CYLINDER
SUSPENSION TRAVEL - REAR
7.5 IN (190 MM)
SUSPENSION TRAVEL - FRONT
7.5 IN (190 MM)
features

2024 Argo Xplorer XR 500 SE Graphite Grey Engine

This compact 4-stroke single overhead camshaft (SOHC) engine is liquid cooled and features electronic fuel injection (EFI). Offering the perfect balance of horsepower and torque, the 443cc engine will work just as hard as you do to get the job done while providing the necessary power for trail rides.

2024 Argo Xplorer XR 500 SE Graphite Grey

SUSPENSION

XR 500 models feature independent double A-arm front and rear suspensions with extended travel for premium comfort and control in all riding conditions. With adjustable preload shocks, riders can easily make adjustments to match their riding style and load carrying requirements.

2024 Argo Xplorer XR 500 SE Graphite Grey

Wheels and Tires

The XR 500 is equipped with 24” Kenda tires seated on steel wheels. These aggressive off-road tires provide superior traction when venturing off road. Always wear a helmet and drive safe.

2024 Argo Xplorer XR 500 SE Graphite Grey

Steel Front & Rear Racks

Gear up and let’s go. Industry-best heavy-duty steel racks deliver a combined carrying capacity of up to 323 lbs, based on model, with multiple tie-down locations for maximum versatility.

2024 Argo Xplorer XR 500 SE Graphite Grey

Multifunctional Digital Gauge

Digital instrument panel with odometer, speedometer, Tripmeter, RPM, transmission position, 2WD/4WD/LOCK indicator, fuel gauge, temperature, low-battery, high beam and check engine lights.

2024 Argo Xplorer XR 500 SE Graphite Grey

PUSH-BUTTON 2WD/4WD WITH FRONT DIFFERENTIAL LOCK

Making your experience better. With just a push of a button, selecting between 2WD/4WD gives you on demand capabilities with the addition of a locking front differential for added grab and traction in unruly terrain.

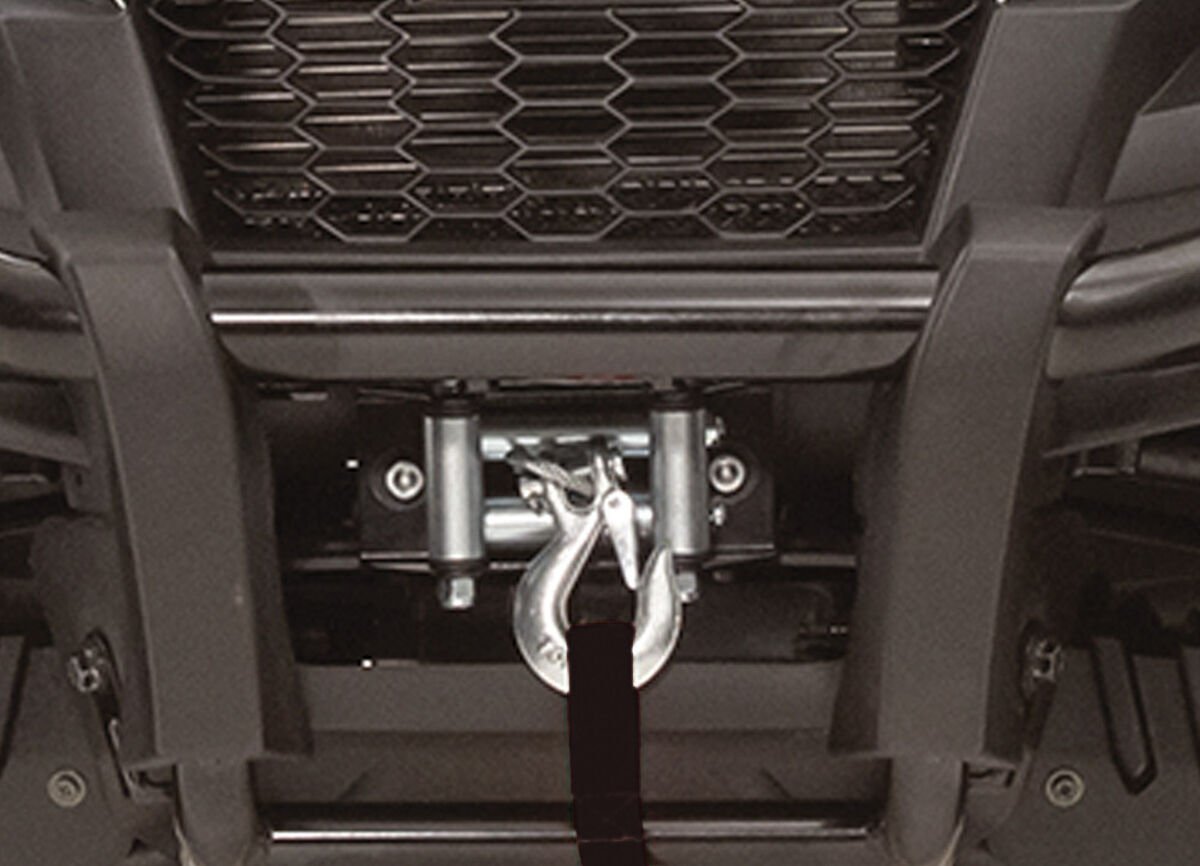

2024 Argo Xplorer XR 500 SE Graphite Grey HEAVY-DUTY 3,000 LB WINCH

Be ready for everything and anything. When you need extra muscle, this heavy-duty 3,000 lb winch has been engineered for durability, which maximizes strength and longevity.

2024 Argo Xplorer XR 500 SE Graphite Grey

Hitch

The rugged 2-inch receiver features automotive styling and a maximum towing capacity up to 1,050 pounds.
