ID # 32750200

TYM Tractors Series 2 Compact 4815

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Compact enough to give you the versatility you need, and powerful enough to take on the tougher jobs on and off the field.

Specifications

Model

Series 2

Category Name

Tractors

Year

2023

Sale Type

New

Manufacturer

TYM Tractors

Engine Power

48 hp

Hitch Lift Capacity

3306 lb

features

All the right features to get the job done

Complete a range of jobs with a TYM Series 2 tractor. Achieve results faster with a powerful high-torque engine, control implements easily with a PTO switch, and stay energized with an ergonomically designed operator station.

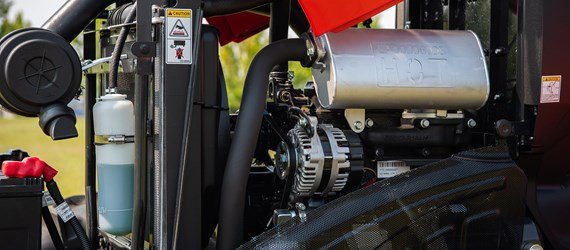

TYM Tractors Series 2 Compact 4815 Eco-friendly TYM Tier-IV engine

Equipped with a naturally aspirated engine designed and manufactured by TYM, the tractor is designed to be eco-friendly and fuel-efficient but makes no compromise on performance and reliability.

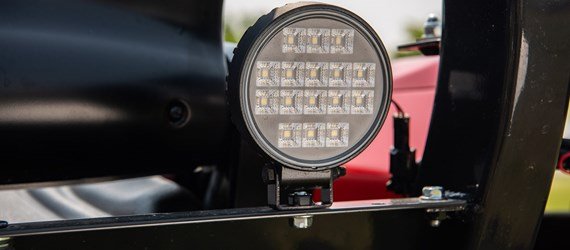

TYM Tractors Series 2 Compact 4815 LED work light (Optional)

Full front & rear LED work lights facilitate safer operations, particularly in low visibility conditions such as rainy or dusty work environments.

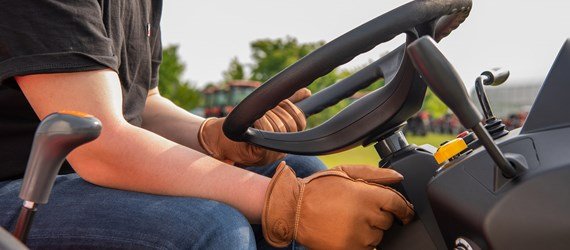

TYM Tractors Series 2 Compact 4815 Tilt steering wheel

The tilt steering wheel allows operators to adjust the position of the steering wheel for a more comfortable driving experience.

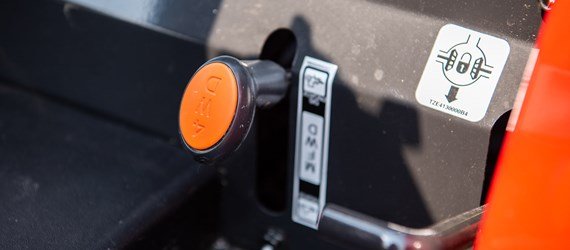

TYM Tractors Series 2 Compact 4815 Differential lock system & low turning angle

The differential lock system activated with easily accessible levers provides enhanced traction in slippery work environments. 52˚ turning angle makes operation in narrow areas much easier.

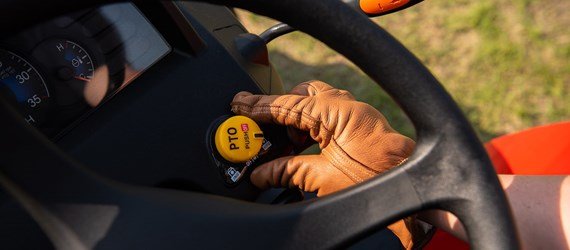

TYM Tractors Series 2 Compact 4815 PTO on/off switch

Safety is always first. The PTO switch ensures the safe operation of all tractor attachments.

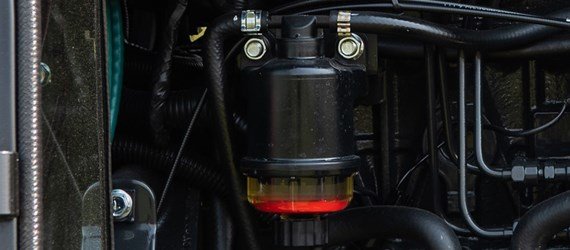

TYM Tractors Series 2 Compact 4815 Water-separating fuel filter

The water-separating fuel filter prevents foreign substances from entering the fuel, ensuring better engine start ability and preventing damage to the machine.

engine

	4815R	4815H
Engine manufacturer	TYM A2300N2 IDI	TYM A2300N2 IDI
Type	Natural	Natural
Gross engine power	48 hp \| 35.8 kW	48 hp \| 35.8 kW
PTO power	40 hp \| 30.7 kW	40 hp \| 30.7 kW
Rated engine speed	2600 rpm	2600 rpm
No. of cylinders	4	4
Displacement	139.5 cu. in.	139.5 cu. in.
Air cleaner	Dry Element	Dry Element
Alternator	12V, 50A	12V, 50A
Fuel system	IDI	IDI

powertrain

Transmission type	Synchromesh	Synchromesh
No. of speeds	12F / 12R	3 range
Max. traveling speed	14.9 mph	18.8 mph
Brakes	Wet, Multi-disc	Wet, Multi-disc
Steering	Hydrostatic	Hydrostatic
Clutch	Dry Single Plate	Dry Single Plate

hydraulic system

Pump type	Single Gear Pump	Single Gear Pump
Implement flow	4.4 gpm	4.4 gpm
Steering flow	9.9 gpm	9.9 gpm
Total flow	14.3 gpm	14.3 gpm
Category, 3-point hitch	CAT I	CAT I
Hitch lift capacity	3306 lb	3306 lb
Hitch lift capacity at 24 inches behind link ends	2425 lb	2425 lb
Lift control type	Position	Position
No. of standard remote valves	Optional (Up to 4)	Optional (Up to 4)

pto

PTO type	Independent	Independent
PTO control	Wet, Multi-disc	Wet, Multi-disc
PTO rear	560 rpm	560 rpm

capacities

Fuel tank	7.1 gal	7.1 gal
Coolant	5.8 qt	5.8 qt
Crankcase	4.8 qt	4.8 qt
Transmission/Hydraulics system	8.9 gal	8.9 gal
Front axle	1.7 qt	1.7 qt

dimensions & weights

Overall length with 3-point hitch	120.9 in.	120.9 in.
Overall width	56.3 in.	56.3 in.
Wheelbase	65.7 in.	65.7 in.
Height to top of ROPS	97.3 in.	97.3 in.
Min. ground clearance	14.4 in.	14.4 in.
Min. turn radius with brakes	7.51 ft	7.51 ft
Min. turn radius without brakes	8.5 ft	8.5 ft
Weight with ROPS	3278 lb	3278 lb
