ID # 32750218

TYM Tractors Series 4 Compact Utility T654

Call for Price
Overview

The output of the T654 suggests it's a utility tractor and the turning radius suggests it's a compact tractor. Offering maximized power and ease of control, this compact utility truly brings you the best of both worlds.

Specifications
Model
Series 4
Category Name
Tractors
Year
2023
Sale Type
New
Manufacturer
TYM Tractors
Engine Power
67 hp
Hitch Lift Capacity
4270 lb
features

Equipped with features to enhance versatility and productivity

With optimized implement linkages and flexible controls, this tractor has the capabilities to complete a variety of jobs, whether big or small. Complete with an intuitive console and a premium cabin, operators have the tools and the comfort to drive productivity.

TYM Tractors Series 4 Compact Utility T654 4-cylinder, liquid-cooled Deutz diesel engine

Built on precise German engineering, the Deutz engine uses Diesel Oxidation Catalysts (DOC) to convert carbon and particulate matter into less harmful emissions. This eliminates the need for regeneration cycles, minimizing maintenance requirements, downtime and the risk of repair.

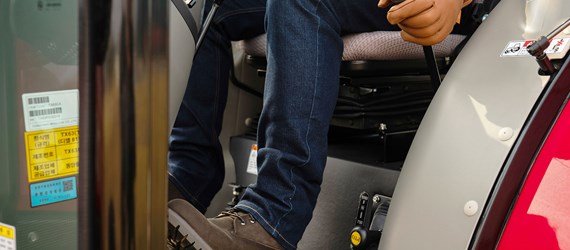

TYM Tractors Series 4 Compact Utility T654 Deluxe cabin with climate control

While providing easy entry and exit from both side doors and a host of modern amenities to maximize operator comfort, this tractor boasts greater visibility with heating and A/C as standard. This enables operators to facilitate task completion, safely and productively in warmer or colder weather.

TYM Tractors Series 4 Compact Utility T654 High capacity fuel tank to support time intensive work

The high capacity fuel tank allows drivers to take on jobs for longer periods without stopping for fuel. This is in addition to the engine, which promotes fuel-efficient operation and increases the time before a refuel.

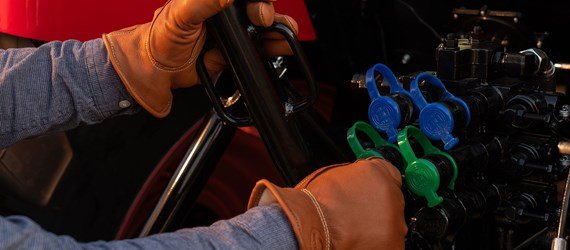

TYM Tractors Series 4 Compact Utility T654 6-port rear hydraulic valve for add-on functions

The 6-port valve on the rear of the tractor allows implements of different functions to be controlled easily. This is particularly beneficial for applications like row crop farming and material handling, as trailers are fit with an optional hydraulic brake.

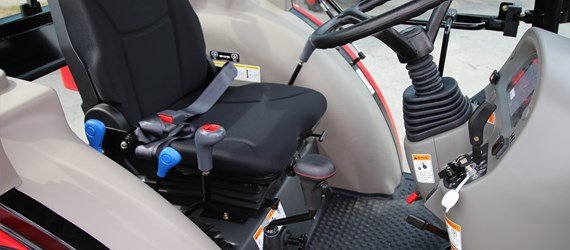

TYM Tractors Series 4 Compact Utility T654 Interior detailing to promote operator comfort

Operators can activate core functions easily from the main console, including the PTO on/off switch. Digital displays provide alerts and diagnostic information instantly and at a glance. In addition to a spacious and ergonomic seat, the operator platform has a flat floor with a rubber mat to support comfort during entry, exit and while driving.

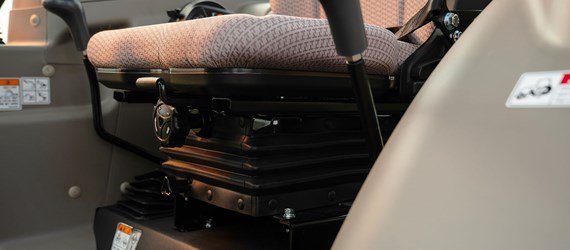

TYM Tractors Series 4 Compact Utility T654 Suspension seat for operator comfort and safety on uneven terrain

The operator cabin is equipped with a suspension seat, minimizing vibrations and impact Particularly beneficial for time-intensive jobs or work on uneven, the operator cabin features a suspension seat that keeps vibrations to a minimum and promotes comfort even during longer operations.

engine
  T654
Engine manufacturer Deutz TCD2.9L4
Type Turbo
Gross engine power 67 hp | 50 kW
PTO power 61.9 hp | 46.1 kW
Rated engine speed 2200 rpm
No. of cylinders 4
Displacement 177 cu. in.
Air cleaner Dual Dry
Alternator 12V, 95A
Fuel system CRDI
powertrain
Transmission type Synchro-Shuttle/HST
No. of speeds F24xR24
Max. traveling speed 24.3 mph
Brakes Wet Disc
Steering Hydrostatic
Clutch Dry Single Plate _ M Wet Multi Plate _ PS
hydraulic system
Pump type Dual Gear Pump
Implement flow 10.3 gpm
Steering flow 5.8 gpm
Total flow 16.1 gpm
Category, 3-point hitch II
Hitch lift capacity 4270 lb
Hitch lift capacity at 24 inches behind link ends 3153 lb
Lift control type Position/Draft/Mech
No. of standard remote valves 2
pto
PTO type  Independent
PTO control  Electric/Hydro
PTO rear  540/750/1000 rpm
capacities
Fuel tank 18.48 U.S. gal.
Coolant 10.6 qt
Crankcase 8.5 qt
Transmission/Hydraulics system 11 qt
Front axle 4.3 gal
dimensions & weights
Overall length with 3-point hitch 155.6 in.
Overall width 72.4 in.
Wheelbase 84.6 in.
Height to top of ROPS 100.2 in.
Min. ground clearance 17.1 in.
Min. turn radius with brakes 141.3 in.
Min. turn radius without brakes 162.2 in.
Weight with cab 5555 lb
standard tires
R1 Agricultural - Front FSTR 9.5 R20 TL
R1 Agricultural - Rear FSTR 380/85R28 TL (14.9R28)
R4 Industrial - Front Trac Chief 10.5/80-18 NHS TL 10PR
R4 Industrial - Rear Xtra Grip 18.4-24 NHS TL 8PR
options
Tire R1 Agricultural Tires F FSTR 9.5 R20 TL R FSTR 380/85R28 TL (14.9R28)
Tire R4 Industrial Tires F Trac Chief 10.5/80-18 NHS TL 10PR R Xtra Grip 18.4-24 NHS TL 8PR
accessories
Block heater
Turbo icing protection kit
Front counterweights
7-pin trailer socket
