2024 Argo Xplorer XR 150 White

  • 2024 Argo Xplorer XR 150 White
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

FUN ON A NEW LEVEL.

Wow, are you serious!?!? This expression will be surrounded by disbelief, awe and happiness when a teen sees their new ARGO XR 150 for the first time. For ages 14 and older, this ATV is the next level up to feed their appetite for trail riding and exploring with the rest of the ATV herd. The rush they get from the 150cc fan-cooled 4-stroke engine will stick in their heads for a lifetime.
The XR 150 features dual hi/low beam headlights, as well as dual taillights and brake lights. Plus, front and rear steel racks to strap on gear for new adventures. The XR 150 is new for 2024 and will provide teenagers a transitional ATV that is set up for the fun they crave.
Specifications
Model
Xplorer
Year
2024
Sale Type
New
Manufacturer
Argo
Color
white
WIDTH
38.0 IN (965 MM)
HEIGHT
40.0 IN (1,015 MM)
LENGTH
70.9 IN (1,802 MM)
IGNITION
CDI
WHEELBASE
44.1 IN (1,115 MM)
DRY WEIGHT
379 LB. (172 KG)
WET WEIGHT
399 LB. (181 KG)
FINAL DRIVE
CHAIN DRIVE
FUEL SYSTEM
CARBURETOR
SEAT HEIGHT
29.8 IN (756 MM)
BRAKE - REAR
HYDRAULIC DISC
DISPLACEMENT
151CC
START METHOD
ELECTRIC START/KICK START
BORE X STROKE
62X49.5 MM
BRAKE - FRONT
DUAL DRUM
ENGINE STROKE
4-STROKE
COOLING SYSTEM
FAN
GROUND CLEARANCE
6.3 IN (160 MM)
TIRE SIZE (REAR)
22X10-10
COMPRESSION RATIO
16:48
DRIVE SYSTEM TYPE
2WD
SUSPENSION - REAR
SWING ARM
TIRE SIZE (FRONT)
21X7-10
TRANSMISSION TYPE
CVT AUTOMATIC
FUEL TANK CAPACITY
2.14 GAL (8.1 L)
SUSPENSION - FRONT
INDEPENDENT SINGLE A-ARM
VALVE CONFIGURATION
2 VALVE
CYLINDER ARRANGEMENT
SOHC SINGLE-CYLINDER
SUSPENSION TRAVEL - REAR
3.5 IN (88.9 MM)
SUSPENSION TRAVEL - FRONT
3.5 IN (88.9 MM)
features

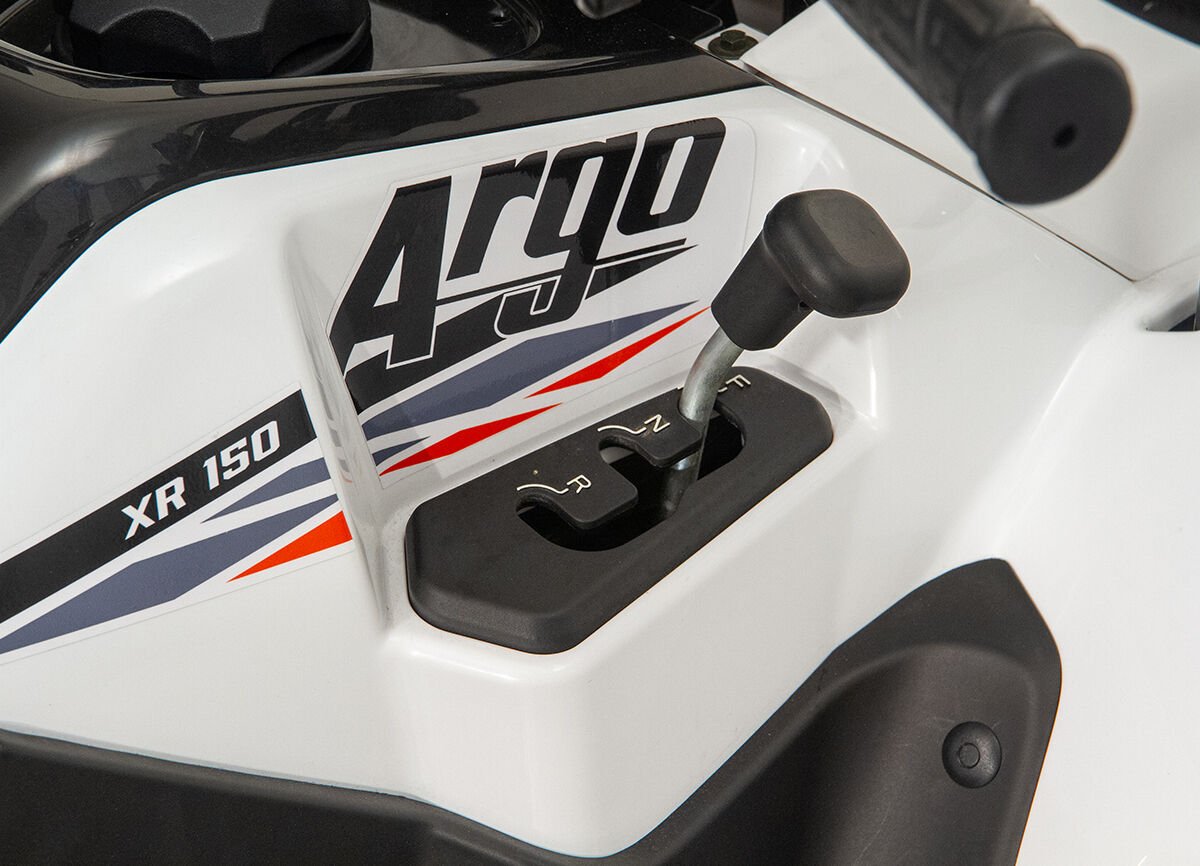

2024 Argo Xplorer XR 150 WhiteTransmission

Smooth in any direction. The durable automatic CVT transmission offers three gear positions — forward, neutral and reverse.
2024 Argo Xplorer XR 150 White

INDEPENDENT SINGLE A-ARM SUSPENSION

While being smaller in size, the XR 150 provides a smooth ride with independent single A-arm suspension with 3.5" of travel in the front and swing arm suspension with 3.5" of travel in the rear.
2024 Argo Xplorer XR 150 White

WHEELS AND TIRES

The XR150 is equipped with Maxxis tires seated on steel rims. These off-road tires provide superior traction when venturing off road.
2024 Argo Xplorer XR 150 White

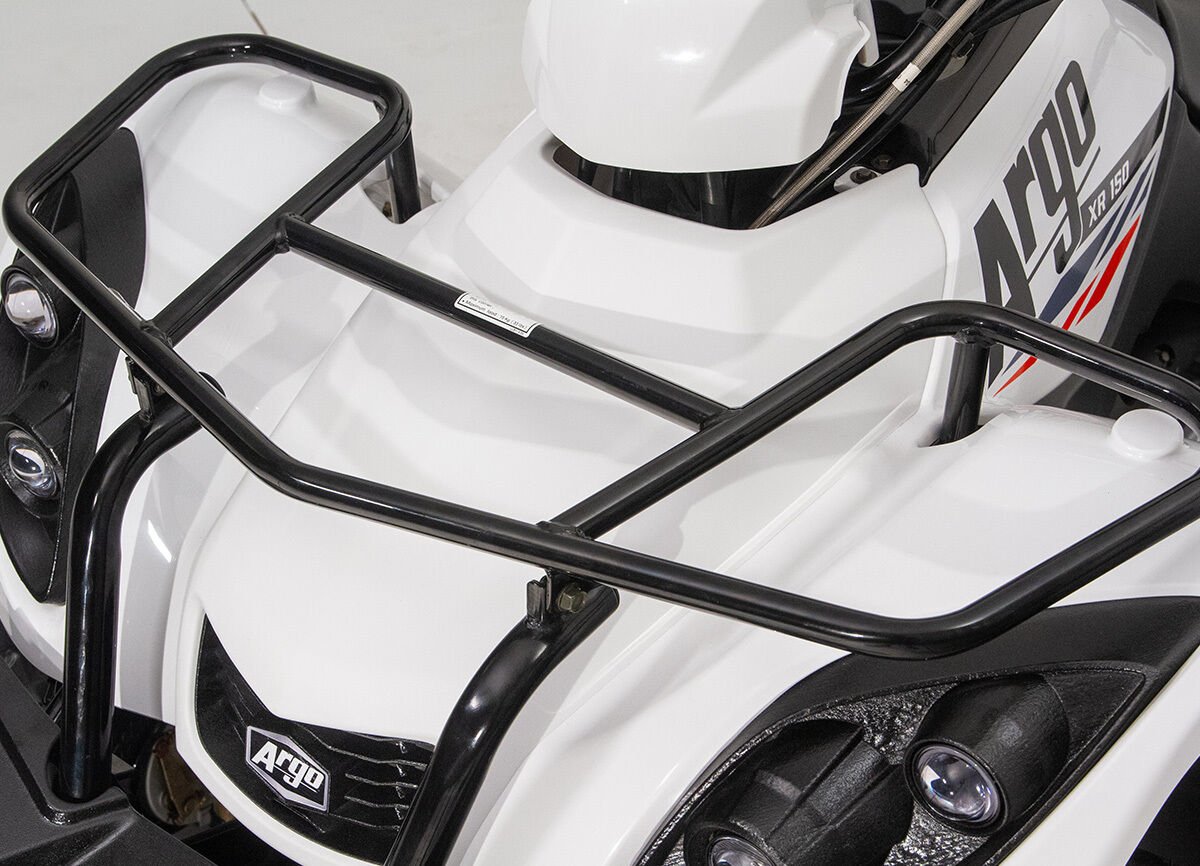

STEEL FRONT & REAR RACKS

These Sturdy Steel usable racks provide you with multiple tie-down locations for maximum versatility.

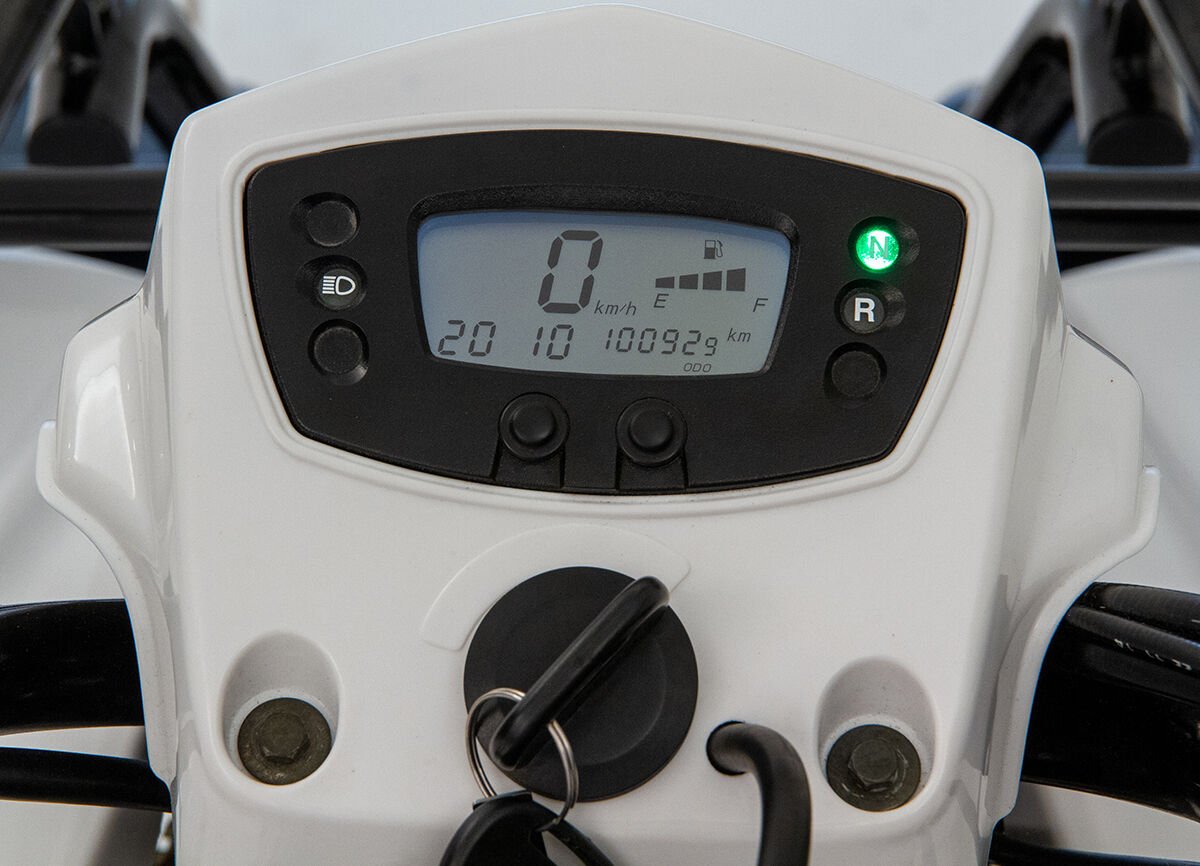

2024 Argo Xplorer XR 150 White DIGITAL GAUGE

Digital instrument panel with odometer, speedometer, Tripmeter, RPM, transmission position, 2WD/LOCK indicator, fuel gauge, temperature, low-battery, high beam and check engine lights.

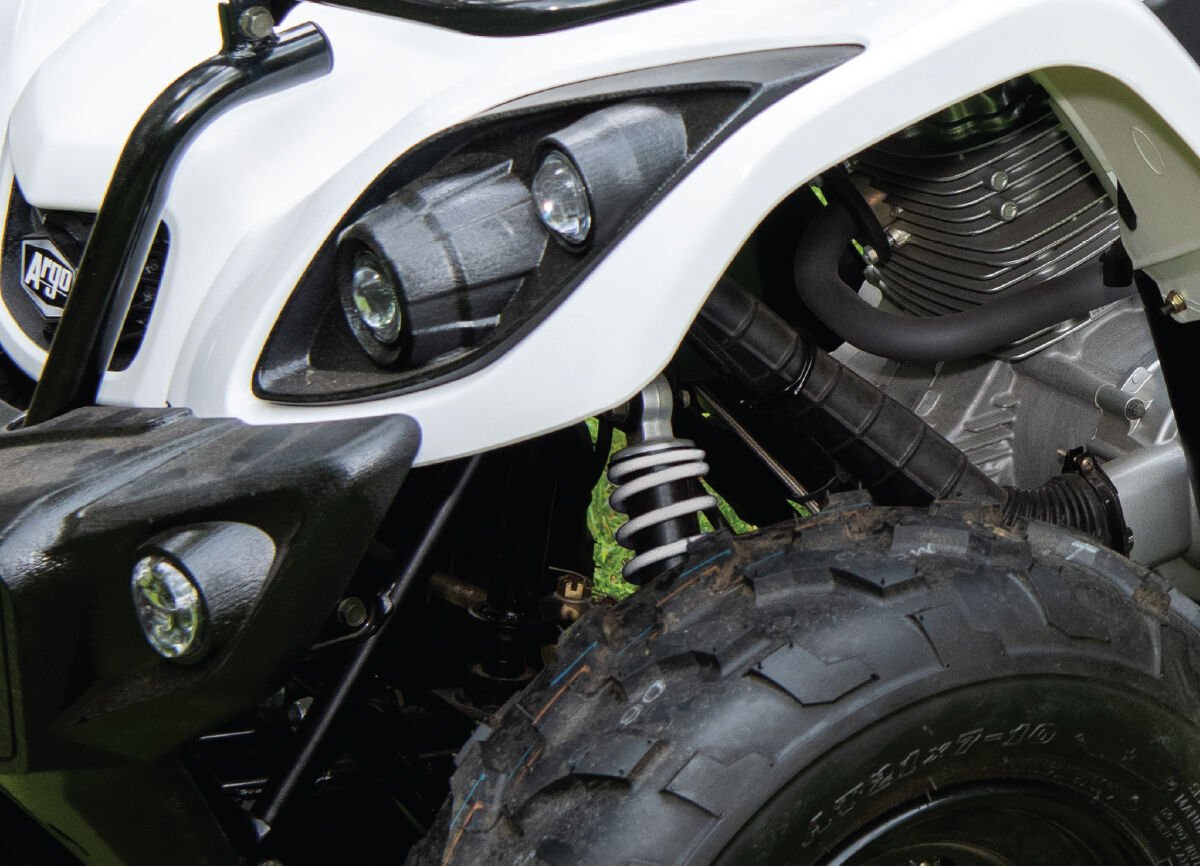

2024 Argo Xplorer XR 150 White HIGH LOW BEAM HEADLIGHTS WITH LED

Safety first and foremost. Front-mounted headlights, rear taillights and brake lights provide added visibility during all hours of operation.
