2024 Argo Magnum XF 500 Dark Green

Videos

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

YOUR LIST IS ENDLESS.

We get it. Doing hard work, well, is hard work. That’s why you need to experience the ARGO Magnum XF 500 to get things done faster. At ARGO, we combine fun and function with our premium side-by-sides. The fun starts with the dependable 443cc liquid-cooled EFI engine for plenty of performance and is anchored by the automatic CV transmission with engine braking for a smooth, safe ride.
The heavy-duty rear dump box gives you the ability to haul your equipment, landscaping rocks or coolers to the dock. We guarantee people will show up to help out with your projects when the Magnum XF 500 is in your driveway.

Specifications

Model

Magnum

Category Name

UTV - Side x Side

Year

2024

Sale Type

New

Manufacturer

Argo

Color

Dark Green

WIDTH

56.7 IN (1,440 MM)

HEIGHT

72.8 IN (1,850 MM)

LENGTH

106.3 IN (2,700 MM)

IGNITION

ECU

REAR RACK

165 LB (75 KG)

WHEELBASE

72 IN (1,829 MM)

DRY WEIGHT

1,025 LBS (465 KG)

FRONT RACK

99 LB (45 KG)

WET WEIGHT

1,080 LBS (490 KG)

FINAL DRIVE

SHAFT DRIVE

FUEL SYSTEM

EFI

SEAT HEIGHT

32.9 IN (836MM)

DISPLACEMENT

443CC

START METHOD

ELECTRIC START

BORE X STROKE

89 X 71.2 MM

ENGINE STROKE

4-STROKE

COOLING SYSTEM

LIQUID

TOWING CAPACITY

1,200 LBS (545.5 KG)

GROUND CLEARANCE

10 IN (254 MM)

TIRE SIZE (REAR)

AT25X10-12 (MAXXIS)

COMPRESSION RATIO

9.1:1

SUSPENSION - REAR

INDEPENDENT DOUBLE A-ARM W SWAY BAR

TIRE SIZE (FRONT)

AT25X8-12 (MAXXIS)

TRANSMISSION TYPE

CVT AUTOMATIC

SUSPENSION - FRONT

INDEPENDENT DOUBLE A-ARM

VALVE CONFIGURATION

4 VALVE

CYLINDER ARRANGEMENT

SOHC SINGLE-CYLINDER

FUEL TANK CAPACITY``

8.5 GAL (32 L)

DIFFERENTIAL FUNCTION

FRONT DIFFERENTIAL

SUSPENSION TRAVEL - REAR

6.8 IN (172 MM)

SUSPENSION TRAVEL - FRONT

6.9 IN (176 MM)

features

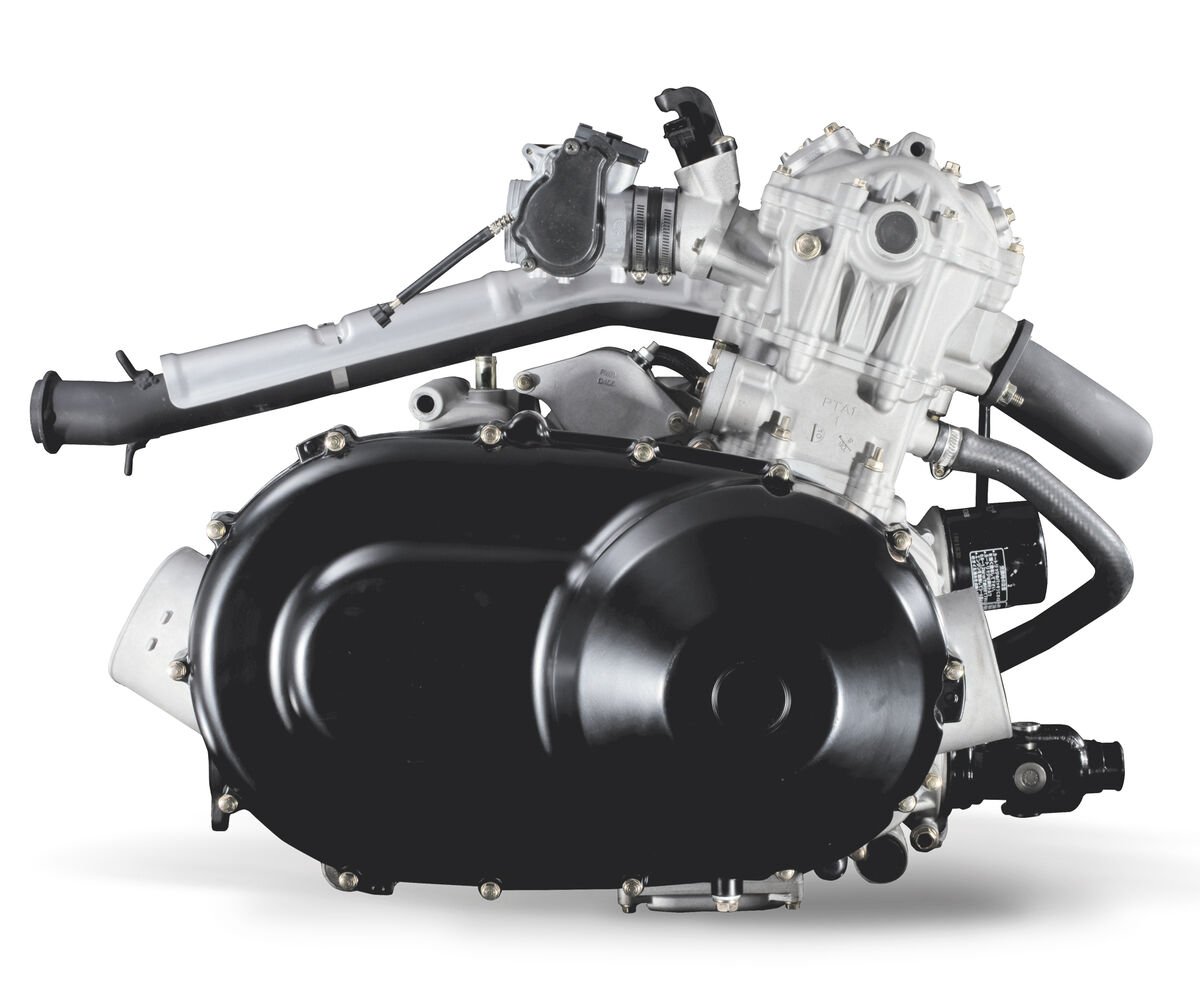

XF 500 ENGINE

The rugged 443cc 4-stroke SOHC engine comes liquid cooled and features electronic fuel injection (EFI). Responsive and fuel efficient, this engine is ready to go to work on and off the trail.

Suspension: Front & Rear Independent Double A-Arm

The Magnum XF models feature a independent double A-arm front and rear suspensions with 7.5” of travel for premium comfort and control in all riding conditions. With 10” of ground clearance and adjustable preload shocks, riders can easily make adjustments to match their riding style and load carrying requirements.

25” Maxxis Tires

Coming standard with 25” Maxxis tires seated on factory steel wheels, these aggressive off-road tires provide superior traction when venturing off road into unknown territory.

Adjustable Tilt Steering Wheel

Installed with operator comfort in mind, the adjustable tilt steering wheel can be adjusted to accommodate the size of the operator.

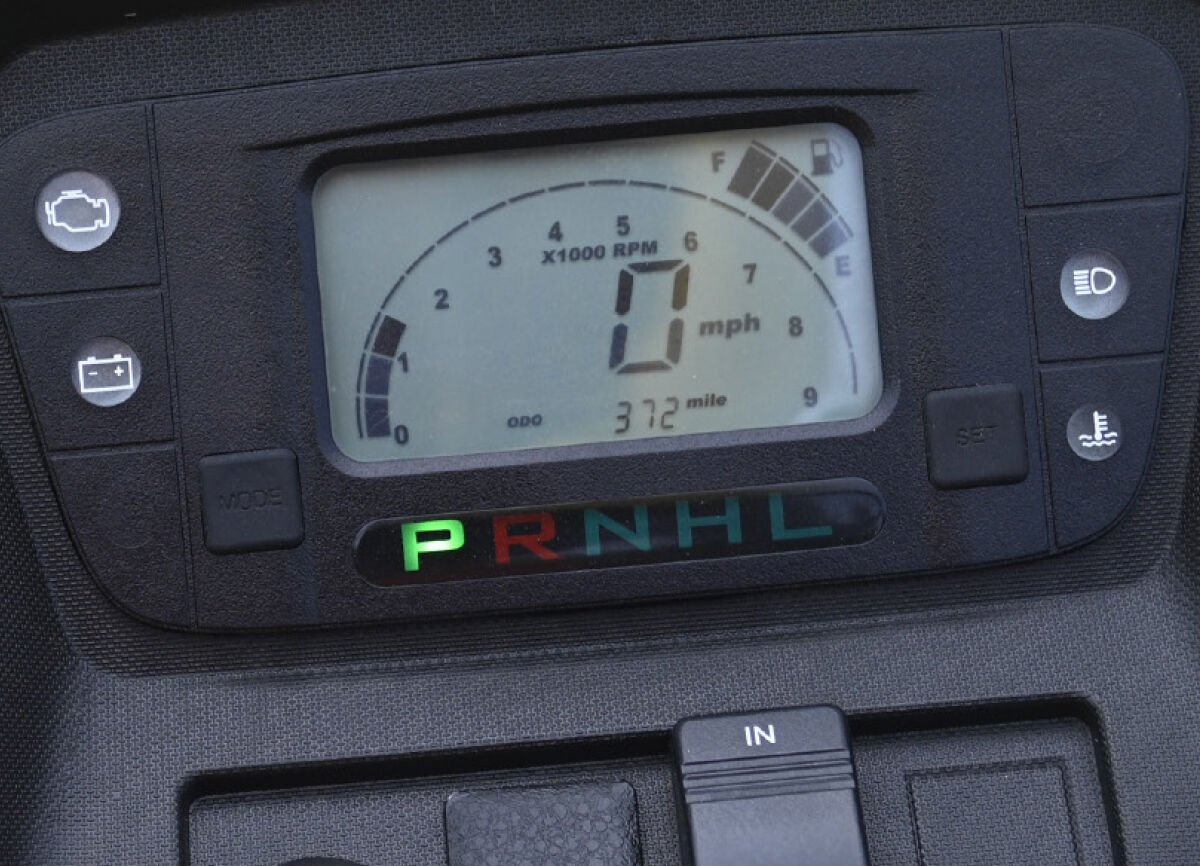

INSTRUMENTATION

Digital instrument panel with odometer, speedometer, tripmeter, RPM, transmission position, 2wd/4wd/lock indicator, APS indicator, fuel guage, temperature, low-battery, high beam light and check engine lights.

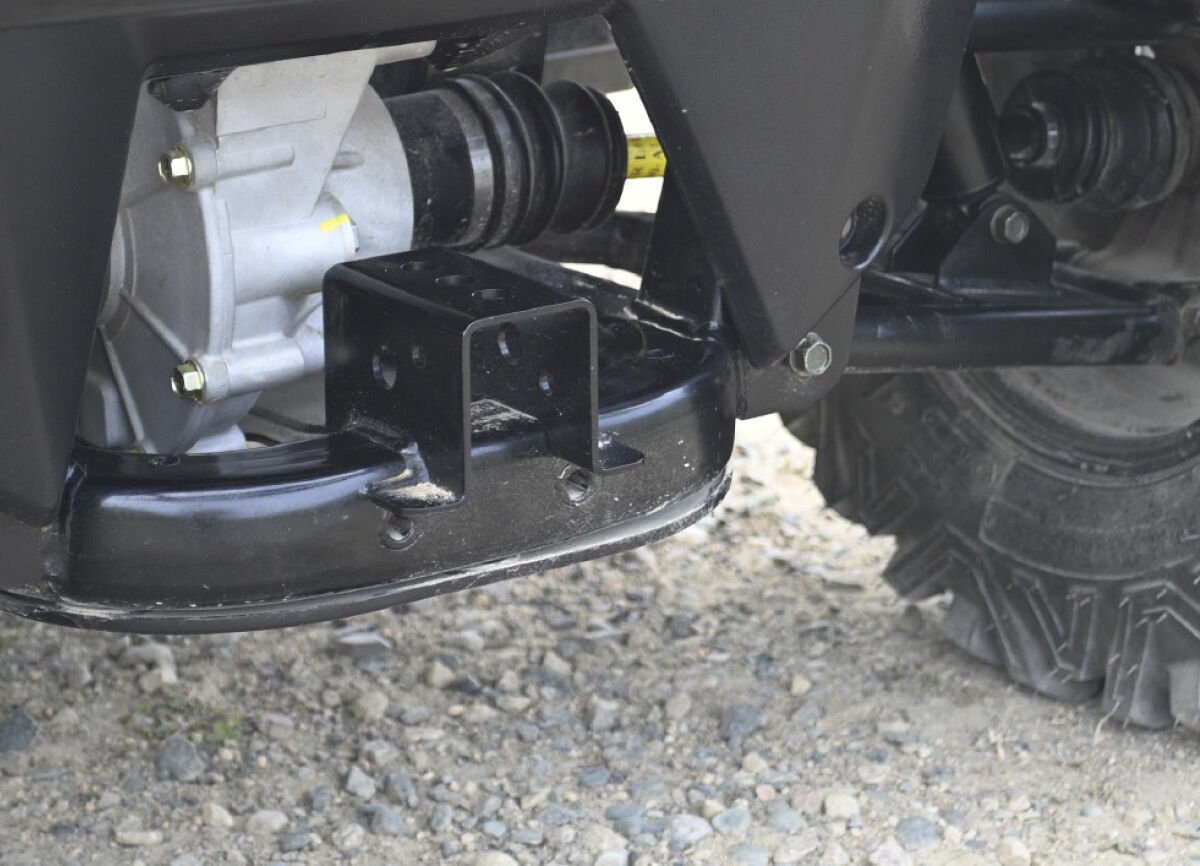

HITCH & TOWING CAPACITY

The 2" rear receiver hitch is backed by a 1,200 lb. (546 kg) towing capacity making it the perfect workhorse for both recreation and utility applications.

Rear Cargo Box with Rubber Box Mat

Built for versatile applications, the Magnum Series Side-by-Sides come standard with a utility cargo box equipped with a tilt assist shock and a 441 lb. load capacity. Additionally, the cargo box is outfitted with a rubber bed mat giving the cargo space added grip and protection.

Storage

Offering added cargo space within the Magnum Series, additional storage is available within the dump box tailgate. You heard that right, stow away your added tools and items within the closable tailgate storage. As well as under the hood, seat and a glove box.
