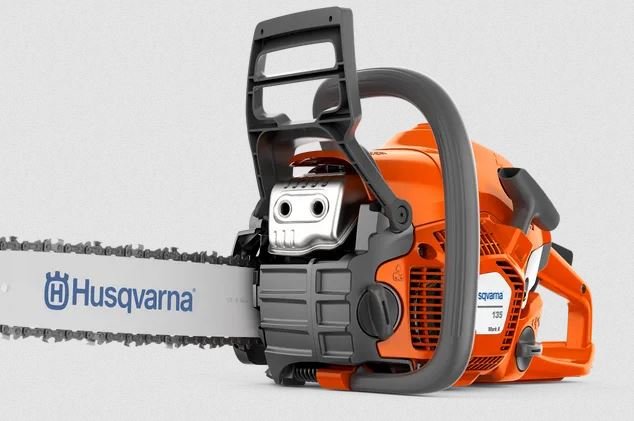

Husqvarna 135 Mark II
Videos
Overview
Easy-to-use and powerful chainsaw with quick start
Get the job done the first time with the Husqvarna 135 Mark II. This reliable gas saw features Smart Start® and LowVib® technology for easy, comfortable use. Our proprietary X-TORQ® engine delivers superior performance, increased fuel efficiency and low emissions. And Air Injection™ technology improves engine life by expelling larger dust and debris particles before they reach the air filter.
Specifications
Category Name
Lawn / Garden
Cylinder Displacement
2.3 cu.inch
Chain Speed At Max Power
55 fts
features
Features

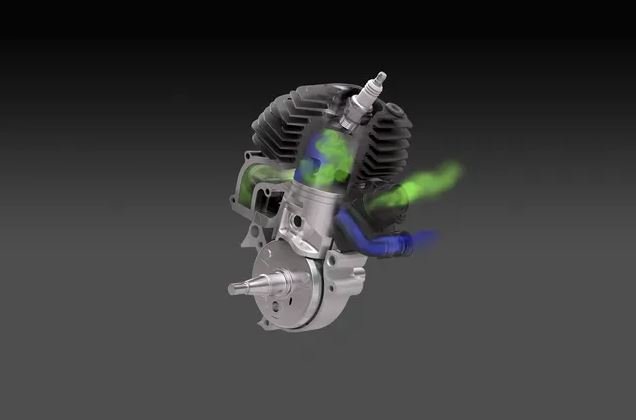

Powerful and Efficient X-TORQ® Engine
X-Torq® engines deliver a great power and torque thanks to highly efficient combustion.
LowVib® Technology
Dampeners between the engine and chassis significantly reduce vibrations so you can work more comfortably

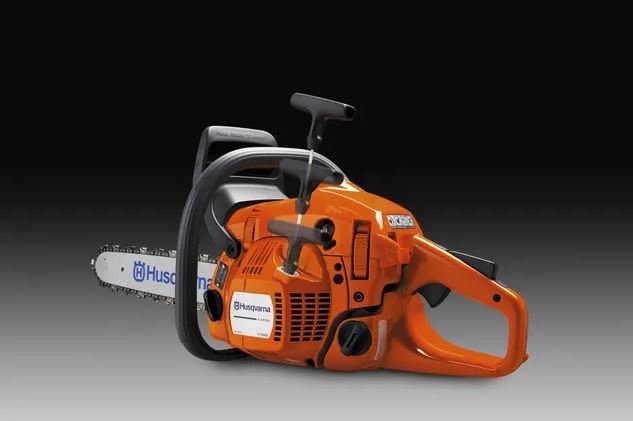

Smart Start® Technology
Specially-designed engine and starter for easy and fast starting with minimum effort. Resistance in the starter cord is reduced by up to 40%.

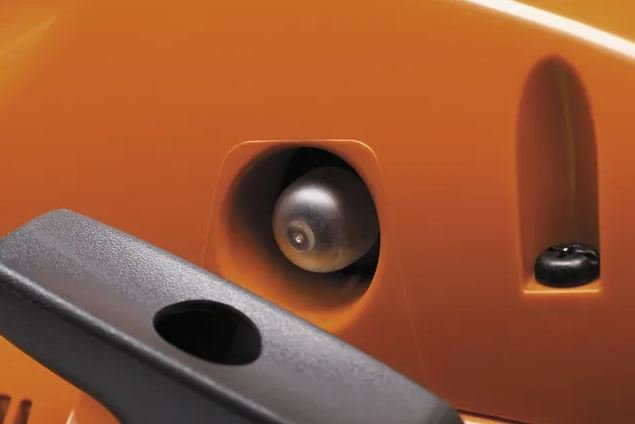

Quick Start with Air Purge
Air purge removes air from carburetor and fuel system for easy starting
Simple Starting
Stop switch automatically resets to ON so chainsaw is ready for next use
Air Injection™ Technology
Centrifugal air cleaning system expels larger dust and debris particles before they reach the air filter to help improve engine life

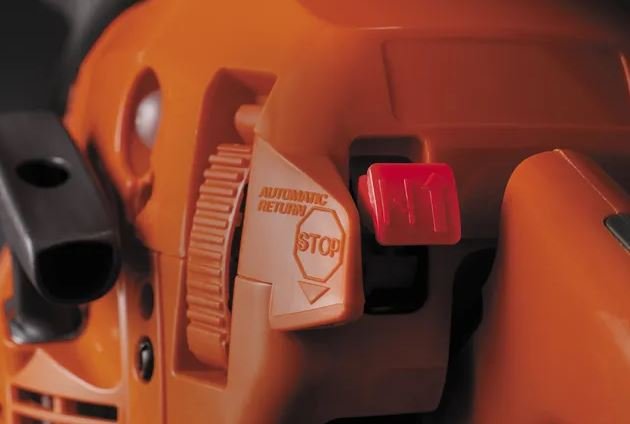

Combined Choke/Stop Control
Provides easier starting and reduces the risk of engine flooding
Inertia-Activated Chain Brake
Reduces the likelihood of injury due to kickback.

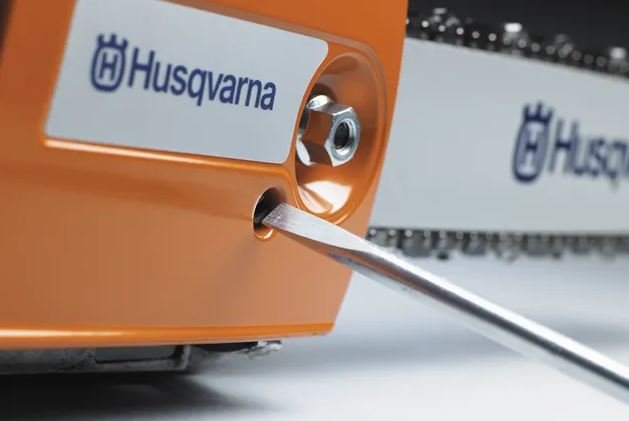

Side Chain Tensioning
Quickly and easily adjust the chain
engine
Engine
16" 3/8 S93G SN, US/CA SKU: 967 86 18‑16
Maximum Power Speed
9,000 rpm
Torque, Max. At Rpm
8,000 rpm
Cylinder Displacement
2.3 cu.inch
Ignition Module Air Gap
0.012 in
Chain Speed At Max Power
55 fts
Clutch Engagement Speed (±120)
4,000 rpm
equipment
Recommended Bar Length, Max
16 in
Recommended Bar Length, Min
14 in
dimensions
Weight (excl Cutting Equipment)
10.36 lbs
lubricant
Oil Tank Volume
0.549 US pint
Lubricant Type (Engine)
Husqvarna 2 stroke or equiv. at 50:1
sound and noise
Sound Power Level, Measured
114.34 dB(A)
Sound Power Level, Guaranteed (LWA)
116 dB(A)
Sound Pressure Level At Operators Ear
102 dB(A)
vibration
Equivalent Vibration Level (ahv, Eq) Rear Handle
5.5 m/s²
Equivalent Vibration Level (ahv, Eq) Front Handle
3.72 m/s²
