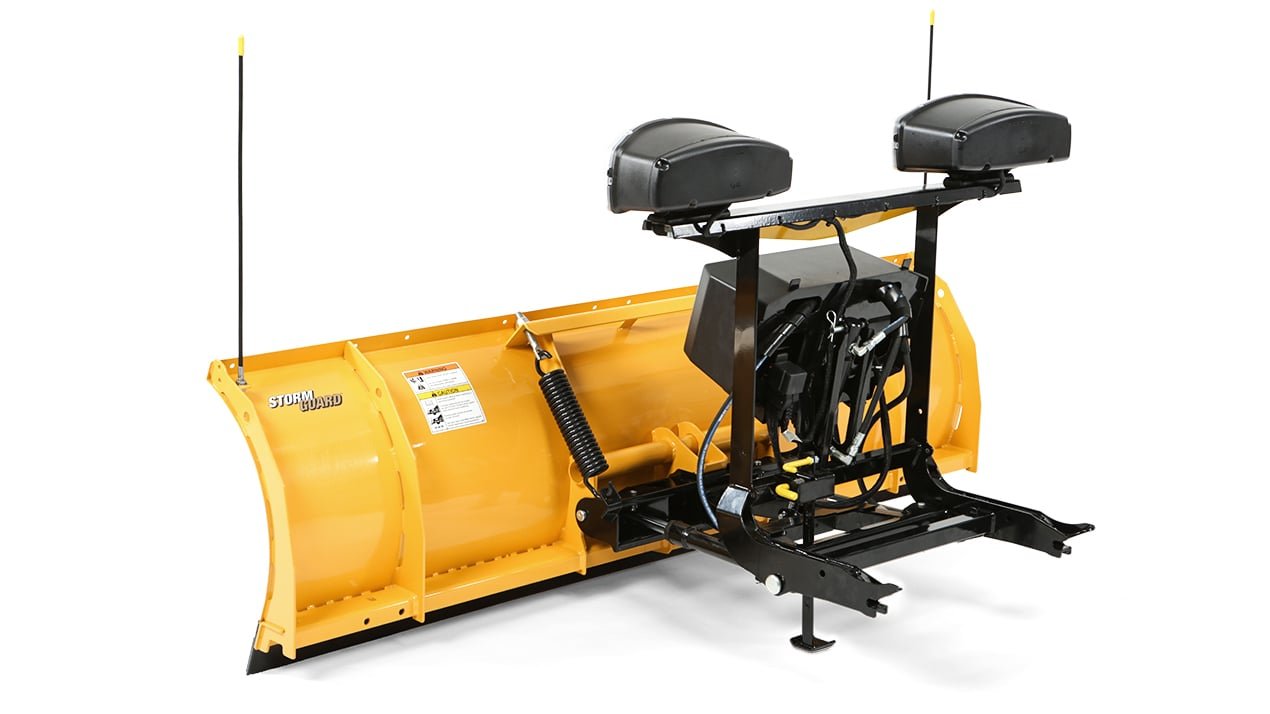

Fisher HS Compact Snowplow

  • Fisher HS Compact Snowplow
  • Fisher HS Compact Snowplow
  • Fisher HS Compact Snowplow
  • Fisher HS Compact Snowplow
  • Fisher HS Compact Snowplow
  • Fisher HS Compact Snowplow
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Book a Demo   Get Directions  Print
Overview
Choose the One That's Trusted by the Pros

When doing it right means doing it yourself, choose the brand that's trusted by the pros. The FISHER® HS compact snowplow is a full-featured snowplow that's easy to attach and easy to operate, so you can clear your property how you want and when you want from the comfort of your own vehicle. Designed specifically for mid-size pickup trucks and SUVs, the FISHER HS compact plow will have you rigged and ready for whatever winter throws your way.






  Specifications
Model 6' 8" 7' 2"
Blade Width 6' 8" 7' 2"
Blade Height 23½" 23½"
Blade Gauge 16 16
Trip Springs 2 2
Ribs 6 6
Plowing Width (full angle) 5' 11" 6' 4½"
Approx. Weight* 290 lb 297 lb
Disc Shoes optional optional
Cutting Edge 1/4" x 5" 1/4" x 5"



Specifications
Model
HS Compact Snowplow
Year
2021
Sale Type
New
Manufacturer
Fisher
unique features
Plow Blade Construction

Fisher HS Compact Snowplow
The 23½" tall, reliable, 16-gauge, powder coated steel moldboard comes in 6' 8" and 7' 2" widths for rugged snow plowing performance. In other words, you get the brawn of a big plow—and yet it’s light enough for your mid-size truck or SUV.

A standard high-carbon steel cutting edge provides increased wear resistance.
Structural Reinforcement

Fisher HS Compact Snowplow
Six vertical ribs deliver exceptional torsional strength to eliminate blade twisting.

A formed base channel provides extra support along the bottom of the plow blade.

The 1" diameter pivot bushing secures the plow in place, ensuring proper alignment and reducing stress on the overall plow assembly.
Reliable Hydraulics

We produce our own hydraulic system to ensure the highest standards of performance, quality and reliability, giving you a plow that is fast, responsive and built to last.
All critical hydraulic components are fully enclosed for protection from the elements.
Fisher HS Compact Snowplow Trip Protection

The HS compact snow plow features full blade trip. This design incorporates two trip springs, allowing the blade to trip forward when encountering hidden obstacles, protecting your snow plow and vehicle from jarring damage.
Ground Clearance

Fisher HS Compact Snowplow
When the plow is not in use, quickly maximize vehicle ground clearance with the removable receiver brackets. No tools required.
Fisher HS Compact Snowplow Scrape Lock

The FISHER® Scrape Lock system locks the plow in any position you put it in to give you a cleaner scrape, especially while back dragging. With the plow locked in place, Scrape Lock gives you the performance of a larger plow without the extra weight and without the need to push any extra buttons.
universal features

Fisher HS Compact Snowplow INTENSIFIRE™ Snow Plow Headlights

Available in both LED and Dual-Halogen models, INTENSIFIRE™ plow lights are engineered and tested for maximum light output, performance and durability to keep you ahead of the next storm.

Fisher HS Compact Snowplow SECURITY GUARD™ Anti-Theft System

The exclusive SECURITY GUARD™ anti-theft system is a safe and secure way to electronically lock your snow plow whenever it is detached from your truck. Unlike physical locks that can easily be cut or removed, the system provides a deterrent against theft by allowing you to electronically lock the snow plow's hydraulic functions, rendering your plow inoperable to unauthorized users.

Fisher HS Compact Snowplow STORM GUARD™ Baked-On Powder Coat

The industry’s best protection against wear and rust, the STORM GUARD™ baked-on powder coat with epoxy primer is standard on all FISHER® snow plows. Each FISHER plow goes through an automated, eight-wheel shot blaster pre-treatment process to remove mill scale and profile steel surfaces for the best adhesion, followed by a multi-stage pre-wash which provides superior surface preparation.

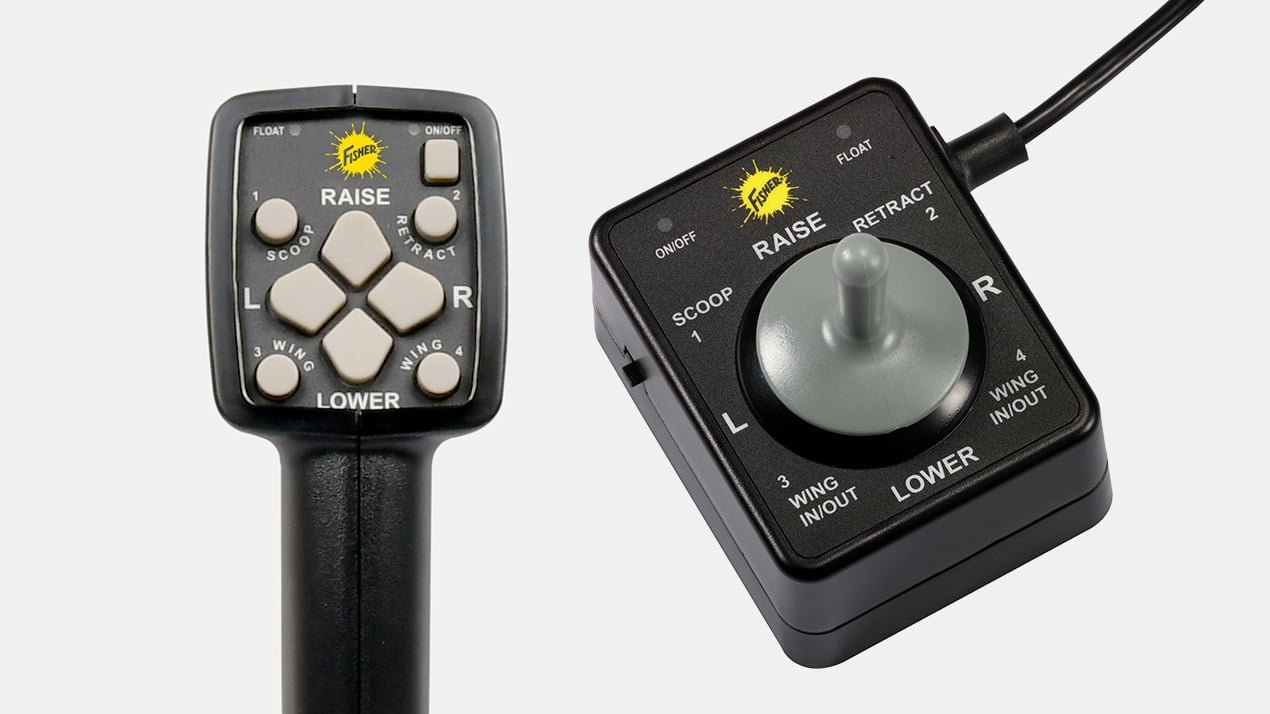

Fisher HS Compact Snowplow Plow Control Options

Choose between the ergonomic Fish-Stik® hand-held control or the dash-mounted joystick control (not shown) based on your preference.

Both feature automatic shutoff, backlit buttons for night operation, and LED lights which indicate "power" and "float" mode. Both controls have a plug-in connector for easy removal.

Fisher HS Compact Snowplow Isolation Module

An underhood module transfers lights from vehicle to plow automatically and improves system reliability by using plug 'n play, sealed electrical connections that comply with OEM requirements. Isolating the plow's electrical system from the vehicle's prevents the potential of electrical system damage in the event of a shorted circuit.

Pre-Punched Blades for Accessories

The blade is pre-punched for easy installation of accessories, providing a custom fit. The pre-punched holes also prevent damage to the powder coat that can sometimes occur when installing an accessory.
