Fisher TRAILBLAZER™ Heavy-Duty UTV STRAIGHT BLADE & V-PLOWS

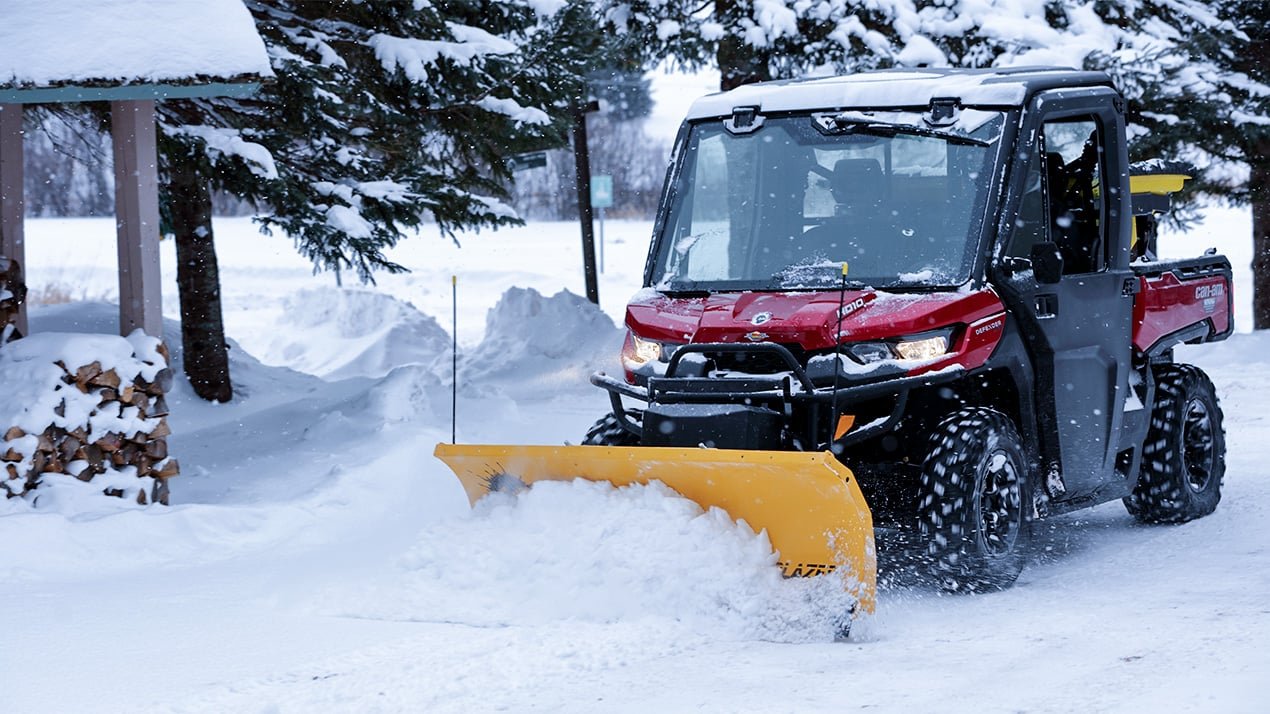

The 6' wide, 14-gauge powder coated steel moldboard and standard 5" high-carbon steel cutting edge make the TRAILBLAZER™ straight blade a strong choice that is the right size for your UTV.

Structural Reinforcement – Straight

With four vertical ribs and high-strength, low-weight, alloy steel construction, the TRAILBLAZER™ UTV straight blade is strong enough for commercial operation and light enough to fit most UTVs.

Trip Protection – Straight

Two heavy-duty coil springs protect your plow and UTV by allowing the whole blade to trip when striking obstacles.

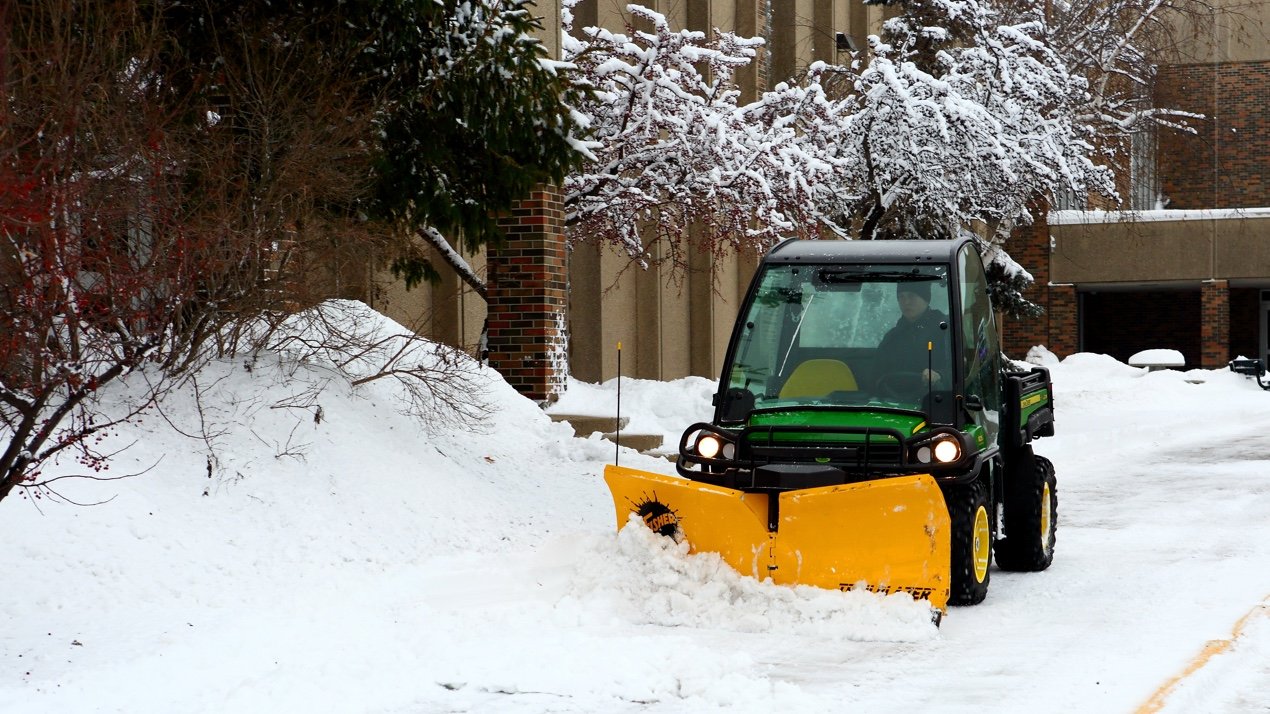

Blade Construction – V-Plow

Featuring a 6' wide powder coated steel flared moldboard, the TRAILBLAZER™ UTV v-plow blades go from a 25 ¾" center height to a full 29 ¼" at the outer edge.

A high-carbon steel cutting edge also comes standard, increasing wear resistance.

Structural Reinforcement – V-Plow

The high-strength, low-weight alloy steel components are both stronger and lighter than traditional steel, so your utility vehicle can work hard without having to carry the extra weight on your UTV frame like with heavier plows. The TRAILBLAZER™ v-plow blade is reinforced with six vertical ribs, and features the strength of our proven T-frame design.

Trip Protection – V-Plow

Each v-plow blade features independent trip-edge protection to get over bumps and hidden obstacles, whether in V, scoop or straight blade configuration, helping to protect the plow, the UTV and the operator. Since only the bottom edge trips, snow stays in front of the blade, so you can keep on going without dumping the entire load of snow.

The FISHER® trip edge uses compression-type springs that never require adjustment and will not wear out like extension springs.

Double-Acting Cylinders – V-Plow

Double-acting cylinders allow the operator to lock the wings together to use the v-plow in straight blade mode with single button control. Double-acting cylinders also hold the wings firmly in place for clean, efficient back dragging.

Center Snow Control - V-Plow

For exceptional snow containment in all positions, the TRAILBLAZER™ UTV v-plow has a center deflector designed to prevent snow from going over the top of the blade and the formed cutting edges reduce trailing snow.

Width Adjustment – V-Plow

When fully angled or in V mode, the TRAILBLAZER™ UTV v-plow plowing path is 5' wide, and 4' 7" in scoop. For UTVs with a wider wheel base, a width-adjustment setting is available to make your plowing path wider in these positions. Using the alternate setting, the plowing width is 5' 6" when fully angled or in V, and 5' 1" in scoop.

Scrape Lock

The FISHER® Scrape Lock system locks the plow in any position you put it in to give you a cleaner scrape, especially while back dragging. With the plow locked in place, Scrape Lock gives you the performance of a larger plow without the extra weight and without the need to push any extra buttons.
