ID # 27682646

Kioti CX2510 HST

Call for Price
  • Tilt Wheel with Power Steering
  • Illuminated Dashboard
  • Comfortable Seat with Suspension
  • Single Lever Joystick
  • USB and Power Socket
  • Cruise Control
  • Twin Pedals
  • Hydrostatic Transmission
  • Rear PTO with adjustable three-point hitch
  • High Capacity Hydraulic Pump
CX Series
Sale Type
Dry Single
PTO Type
Transmission Type
Engine Gross Power
24.5 hp (18.2 kW)
Kioti CX2510 HST
Tilt Wheel with Power Steering
Hydrostatic power steering minimizes the effort required to make tight, repetitive turns. The standard tilt steering wheel ensures all operators have a comfortable driving experience.

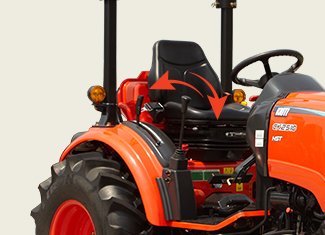

Kioti CX2510 HST Comfortable Seat with Suspension

With a high-quality adjustable suspension seat, the operator enjoys a comfortable and smooth ride. A seat belt is included for safety.

Kioti CX2510 HST Foldable ROPS

The standard fold-down roll bar allows you to move into low clearance areas quickly and easily.

Kioti CX2510 HST Single Lever Joystick

The operation of the front loader is made easier by the use of a single lever joystick. The lever automatically returns to neutral and the loader stops in place when the joystick is released. A float position allows the bucket free floatation over the ground surface.

Kioti CX2510 HST USB and Power Socket

Power and USB sockets come standard to meet a variety of electrical needs.

Kioti CX2510 HST Rear PTO and 3-Point Hitch

Rear PTO is standard and mid-PTO is optional. You can select the rear or mid-PTO separately or simultaneously. With an adjustable right side lift rod and top link, you can easily and quickly attach implements.

Kioti CX2510 HST HST Transmission

This model features a performance proven, heavy-duty HST drive that delivers power and efficiency. The two range transmission (Hi/Low) with twin pedal operation makes your job easier, smoother and safer.

Kioti CX2510 HST Illuminated Dashboard

The dashboard illuminates when the engine is started. The digital gauge package includes tachometer, fuel and temperature gauges along with a low fuel warning lamp.
Fuel Type
Rated Speed
2,600 rpm
87 cu. in (1,647 cc)
Engine Model
No. Of Cylinders
Engine Gross Power
24.5 hp (18.2 kW)
Fuel Tank Capacity
6.6 gal. (25L)
Transmission Type
No. Of Travel Speeds - Forward / Reverse
Max. Travel Speed Of Forward W/ Ag @ Engine Rated Speed
10.7 mph (21.74 km.h)
Min. Travel Speed Of Forward W/ Ag @ Engine Rated Speed
0 mph (0 km/h)
power take-off (pto)
PTO Power
18.8 hp (14 kW)
Mid PTO Speed
2,000 rpm (Optional)
PTO Type Trans
Rear PTO Speeds (1st)
540 rpm
brakes and clutch
Wet Multi Disc
Dry Single Stage
dimensions w/ ag tire
49.4 in. (1,256 mm)
59.8 in. (1,520 mm)
Ground Clearance
13.4 in. (340 mm)
Length W/ 3-point
109.08 in. (2,790 mm)
Height From Top Of ROPS
82.8 in. (2,103 mm)
Rear Tread Ag Tires - Min
37.4 in. (951 mm)
Front Tread Ag Tires - Min
38.1 in. (968 mm)
Min. Turning Radius W/Brake
8.3 ft. (2.53 m)
Total Pump Flow
11.3 gpm (42.9 L/min)
point hitch
Control Type
Lift Capacity, 24" Aft Of Hitch
1,203 lbs (546 kg)
Standard Category (Optional Category)
Category 1
equipment & panel

Standard Equipment

  • Hydrostatic Power Steering
  • Rear PTO
  • Headlights
  • Safety Lights
  • Cup Holder
  • Illuminated Dashboard
  • Wet Multi Disc Brakes
  • Joystick Valve
  • Adjustable Seat
  • Parking Brake
  • Adjustable Seat with LH/RH Armrest
  • Toolbox
  • USB/12 Volt Power Source

Optional Equipment

  • Single Remote Hydraulic Valve
  • Rear Working Light
  • Front Weight
  • 7 Pin Socket
  • Mid PTO
  • 3rd Function Kit
  • Sun Canopy
  • Clevis Type Drawbar
  • Telescopic Three Point Lift Arms
  • Engine Block Heater
  • Beacon Lamp Wire Kit
  • Dual Air Filter
  • HST Linked Pedal

Instrument Panel

  • Digital Hour Meter
  • Coolant Temperature Gauge
  • Electrical Tachometer
  • Fuel Gauge
  • Engine Oil Pressure Light
  • High Beam, Emergency Flasher, Direction Indicators
  • Glow Plug Light
  • Alternator Light
