ID # 27682652

Kioti NS4710 HST

Call for Price
  • Open Station (ROPS)
  • KIOTI ECO Engine Technology
  • Powerful HST Transmission
  • Single Lever Joystick
  • Hydraulic Independent PTO
NS Series
Sale Type
PTO Type
Transmission Type
Engine Gross Power
44.9 hp ( 33.5 kW)

Kioti NS4710 HST 3-Point Hitch with Telescopic Lower Links

Standard telescopic lower link ends and stabilizers allow the operator to easily connect & adjust a wide variety of 3-point implements. The standard rear 3-point control lever easily raises and lowers the lift arms from outside the tractor when attaching implements.

Kioti NS4710 HST Ergonomic Joystick Lever

An ergonomically designed joystick lever for front loader operation is standard on NS Series tractors.

Kioti NS4710 HST Deluxe Suspension Seat

Ergonomically designed, fully adjustable suspension seat allows the operator to ride in comfort no matter what the task may be. A pocket on the back of the seat allows easy access for the operator's manual.

Kioti NS4710 HST Hydraulic Independent PTO

The standard rear PTO is easily engaged by the simple turn of a knob. A safety interlock prevents the engine from starting when the PTO switch is left on. All models come standard with a selectable manual or automatic PTO option. When the Auto PTO is engaged, the PTO will automatically shut off when the 3-point control is raised, eliminating exposure to the running implements.

Kioti NS4710 HST Eco-Friendly Diesel Engine

The Common Rail Diesel Engine (CRDI) improves fuel efficiency while reducing noise levels. With this eco-friendly Tier 4 engine, the NS Series offers the operator a quiet work environment with powerful performance.

Kioti NS4710 HST Power Steering

Hydrostatic power steering minimizes the effort required to make tight, repetitive turns.

Kioti NS4710 HST Tail Lamp

Tail lights improve operator safety by increasing visibility in low light conditions.

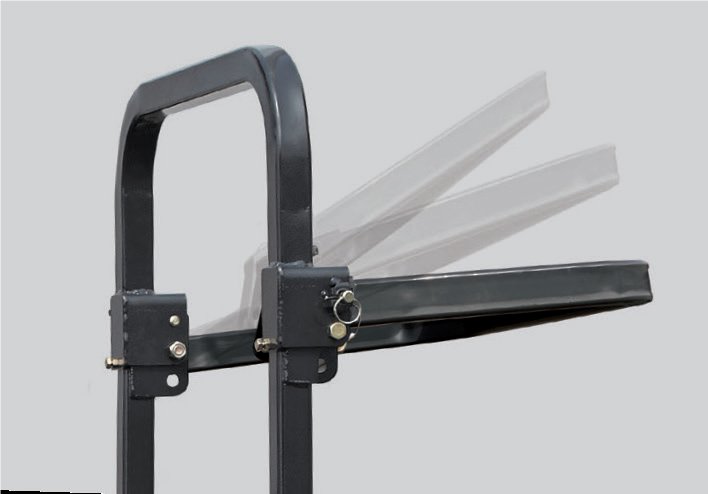

Kioti NS4710 HST Foldable ROPS

A fold-down roll bar allows operators to move into tight areas quickly and easily.

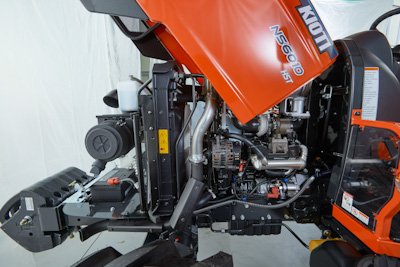

Kioti NS4710 HST Simple Maintenance

KIOTI tractors are designed for easy maintenance. Liftable hoods and removable side panels allow convenient access for daily service checks. Maintaining your tractor for long life and high performance has never been easier.

Fuel Type
Rated Speed
2,600 rpm
111.4 (1,826 cc)
Engine Model
No. Of Cylinders
Engine Gross Power
44.9 hp ( 33.5 kW)
Fuel Tank Capacity
13.2 gal. (50 L)
Transmission Type
No. Of Travel Speeds - Forward / Reverse
3 Range
Max. Travel Speed Of Forward W/ Ag @ Engine Rated Speed
17.5 mph (28.1 km/h)
Min. Travel Speed Of Forward W/ Ag @ Engine Rated Speed
0 mph (0 km/h)
power take-off (pto)
PTO Power
36.6 hp (27.3 kW)
Mid PTO Speed
2,000 rpm (Optional)
PTO Type Trans
Rear PTO Speeds (1st)
540 rpm
brakes and clutch
Wet Multi Disc
dimensions w/ ag tire
67.1 in. (1,705 mm)
75.5 in. (1,918 mm)
Ground Clearance
13.4 in. (340 mm)
Height From Top Of ROPS
98.4 in. (2,500 mm) w/o Beacon
Length W/ 3-point Hitch
136.4 in. (3,465 mm)
Turning Radius W/ Brake
10.94 ft. (3.34 m)
Rear Tread Ag Tires - Min
54.3 in. (1,380 mm)
Front Tread Ag Tires - Min
51.1 in. (1,297 mm)
Pump Capacity (Max. Flow Rate)
16.5 gpm (62.4 L/min)
point hitch
Control Type
Position with Draft Control
Standard Category
Category 1
Lift Capacity, 24" Aft Of Hitch
2,493 lbs. (1,131 kg)
equipment & panel

Standard Equipment

  • Power Steering
  • Rear PTO
  • Single Remote Hydraulic Valve
  • Wet Multi Disc Brakes
  • Joystick Valve
  • Drawbar
  • Headlights
  • Parking Brake
  • PTO cover

Optional Equipment

  • Sun Canopy
  • Beacon Light
  • Rear Working light
  • Front Weights
  • Mid PTO
  • Clevis Type Drawbar
  • Rear View Mirror (1ea)
  • Second Remote Hydraulic Valve (Non-Detent)
  • Second Remote Hydraulic Valve (Detent)
  • Fuel Heater Kit

Instrument Panel

  • Digital Hour Meter
  • Coolant Temperature Gauge
  • Electrical Tachometer
  • Fuel Gauge
  • Engine Oil Pressure Light
  • High Beam, Emergency Flasher, Direction Indicators
  • Glow Plug Light
  • Alternator Light
