ID # 27682670

Kioti NX5510 Cab

Call for Price
  • 24x24 Manual Transmission
  • CRDI diesel with Daedong ECO Technology
  • Independent PTO with Auto and Manual Selection
  • PTO Cruise Control
  • True Speed Cruise Control
  • Rear Differential Lock
  • Torque Compensation

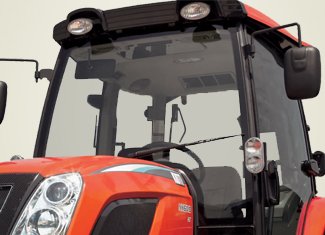

  • Deluxe Cab with Panoramic View
NX Series
Sale Type
Dry Type Single Plate
PTO Type
Transmission Type
Synchro Shuttle
Engine Gross Power
55 hp (41 kW)

Kioti NX5510 Cab CRDI Diesel Engine with Daedong ECO Technology

The new Common Rail Diesel Engine (CRDI) improves fuel efficiency while reducing noise levels. With this eco-friendly Tier 4 engine, the NX series offers the operator a quiet work environment with powerful performance.

Kioti NX5510 Cab Torque Compensation

This feature enables the engine to maintain a consistent and stable torque level under all conditions.

Kioti NX5510 Cab Turn Assist Control

The optional turn assist control kit will drop the engine rpm by 10% automatically when turning sharply. This feature will allow for more precise work and reduces fuel consumption during sharp turns.

Kioti NX5510 Cab Anti-Stall Function

When the "Anti-Stall function" is engaged, the tractor will protect itself from instant engine stall when there is momentary engine overload. The operator can also fix and set maximum speed limit when safe and precise working is needed.

Kioti NX5510 Cab Projection and Working Lamp

With the new projection head and working lamp, the operator will experience safer and easier operation after the sun goes down.

Kioti NX5510 Cab PTO Cruise Control

With one touch, engine speed may be set to maintain steady PTO rpm to maximize working efficiency. When engaged, the operator may manipulate the PTO rpm by simply clicking a switch.

Kioti NX5510 Cab True Speed Cruise Control

Electronic HST control system enables the tractor to maintain a set speed no matter what the condition of the ground or load is. This is a very useful feature especially for work requiring a set speed for precise coverage or application.

Kioti NX5510 Cab Hydraulic Independent PTO

The standard rear PTO is easily engaged by the simple push of a button. A safety interlock prevents the engine from starting when the PTO switch is left on. All models come standard with a selectable manual or automatic PTO option. When the Auto PTO is engaged, the PTO will automatically shut off when the 3-point control is raised, eliminating exposure to the running implements.

Kioti NX5510 Cab Power Steering

Hydrostatic power steering minimizes the effort required to make tight, repetitive turns. The steering wheel tilts with the simple push of a lever, allowing easy adjustment to fit the operator needs.

Kioti NX5510 Cab Deluxe Suspension Seat

Ergonomically designed, fully adjustable suspension seat allows the operator to ride in comfort no matter what the task may be. A pocket on the back of the seat allows easy access for the operator's manual.

Kioti NX5510 Cab Ergonomic Joystick Lever

An ergonomically designed joystick lever for front loader operation is standard on NX series tractors.

Kioti NX5510 Cab Window Wiper

The standard window wiper (rear optional) improves visibility and keeps the window free from rain and dust.

Fuel Type
Rated Speed
2,600 rpm
111.4 (1,826 cc)
Engine Model
No. Of Cylinders
Engine Gross Power
55 hp (41 kW)
Fuel Tank Capacity
14.8 gal. (56 L)
Transmission Type
No. Of Travel Speeds - Forward / Reverse
24 x 24
Max. Travel Speed Of Forward W/ Ag @ Engine Rated Speed
17.35 mph (27.93 km/h)
Min. Travel Speed Of Forward W/ Ag @ Engine Rated Speed
0.12 mph (0.19 km/h)
power take-off (pto)
PTO Power
46 hp (34.3 kW)
Mid PTO Speed
2,000 rpm (Optional)
PTO Type Trans
Rear PTO Speeds (1st)
540 rpm
brakes and clutch
Wet Multi Disc
Dry Single Plate
dimensions w/ ag tire
65.6 in. (1,665 mm)
75.6 in. (1,920 mm)
Ground Clearance
13.7 in. (350 mm)
Length W/ 3-point Hitch
139.6 in. (3,547 mm)
Turning Radius W/ Brake
9.81 ft. (2.99 m)
Rear Tread Ag Tires - Min
52.1 in. (1,324 mm)
Front Tread Ag Tires - Min
55.2 in. (1,352 mm)
Height From Top Of ROPS Cab
103.1 in. (2,618 mm)
Pump Capacity (Max. Flow Rate)
16.5 gpm (62.4 L/min)
point hitch
Control Type
Position with Draft Control
Standard Category
Category 1
Lift Capacity, 24" Aft Of Hitch
3,177 lbs. (1,441 kg)
Weight With Ag Tires
4,562 lbs. (2,069.3 kg)
equipment & panel

Standard Equipment

  • Rear Differential Lock
  • Rear PTO
  • Digital LED Panel
  • Wet Multi Disc Brakes
  • Draft Control
  • Joystick Valve
  • Fixed Drawbar
  • Adjustable Seat
  • Headlights
  • Safety Lights
  • Cup Holder
  • SMV Sign
  • Parking Brake

Optional Equipment

  • Single/ Dual Remote Hydraulic Valve
  • Front Weights
  • 7 Pin Socket
  • Turn Assist
  • Canopy
  • Locking Fuel Cap
  • Rear Weight

Instrument Panel

  • Tachometer with Hour Meter
  • Fuel Gauge
  • Temperature Gauge
  • Oil Pressure Indicator
  • PTO Indicator
  • Low Fuel Indicator
  • Hydraulic Warning
  • Glow Plug Indicator
  • Low Coolant Indicator
