ID # 27682703

kioti K9 2400

Call for Price
  • Hydraulic Power Steering
  • 4WD
  • 12.5” ground clearance
  • 1,598 lbs. payload capacity
  • 1,300 lbs. towing capacity
  • Independent wishbone type front and rear suspension
  • Four wheel hydraulic disc brakes
K9 2400
Sale Type
Transmission Type
2 speed CVT
Engine Gross Power
22 hp (16.4 kW)
kioti K9 2400 Improved Styling
With improved styling and body design, the K9 has an aggressive look.

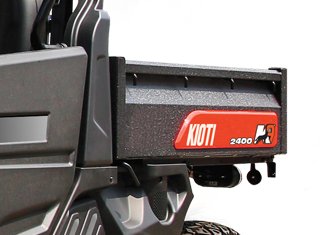

kioti K9 2400 Cargo Bed

With the widest cargo bed in its class and a 1,102 lbs. (500 kg) load capacity, the MECHRON® provides excellent payload capabilities. Add the optional hydraulic dump kit and you can easily place any load where you want it.

kioti K9 2400 Front and Rear Hitch Receiver

With the standard front and rear hitch receivers you can attach and pull trailers as well as implements that are receiver equipped.

kioti K9 2400 Bench Seat

The contoured bench seat is the widest in its class and seats three comfortably. Three seat belts come standard.

kioti K9 2400 Standard Instrument Cluster

Speedometer in mph (km/h), hour meter, fuel gauge, coolant temperature gauge and turn signal indicators are standard.

kioti K9 2400 Differential Lock

Limited slip differential on the front, mechanically actuated differential for the rear and standard four-wheel drive allow the MECHRON® to pull heavy loads and handle the most rugged terrain.

kioti K9 2400 Adjustable Rear Suspension

The adjustable Wishbone type suspension allows you to fine tune the MECHRON® to fit your specific needs.

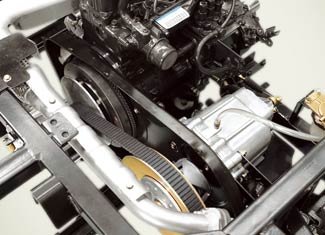

kioti K9 2400 Transmission

The MECHRON® uses a continuously variable transmission (CVT) and has a time proven Daedong gearbox with 2 speeds (Hi/Lo) and 4WD.

kioti K9 2400 Under Hood Storage

Convenient under hood storage compartment.

kioti K9 2400 Brake System

Long lasting front and rear hydraulic disc brakes with a mechanical parking brake provide excellent performance and enhanced safety.

kioti K9 2400 Engine

The Daedong 22 hp (16.4 kW) diesel engine has been field proven for durability and dependability while offering improved fuel economy.

kioti K9 2400 Brush Guard

The 3-point control lever allows you to easily The heavy-duty steel brush guard offers protection for the headlights, radiator and front differential from rocks, tough brush and other debris on the trail. An optional front mounted winch allows for greater versatility when it comes to tough jobs and difficult terrain. and lower the lift arms when attaching implements.

kioti K9 2400 Wheels and Tires

Larger 12-inch wheels and 25-inch tires provide a smooth ride and 12 inches of ground clearance. Three tire options are available including Heavy Duty worksite, Turf and ATV tires.

kioti K9 2400 Spray-in Bed Liner

Standard spray-in bed liner increases durability, while adding friction to create an extra layer of security for your cargo.

Engine Type
4-Cycle Diesel, 3 Cyl., In-line Vertical, Water-Cooled
61.45 cu. in. (1,007 cc)
Engine Gross
24 hp (17.89 kW)
Engine Model
Rated Revolution
3,000 rpm
Fuel Tank Capacity
9.7 gal. (37 ℓ)
drive train
Belt CVT
Front/Rear Hydraulic Disc
Gear Range
Low, High, Neutral, Reverse
Ground Speed
0-31 mph (0-50 km/h)
Rear Suspension
Independent, Double A-Arm (Wishbone type)
Front Suspension
Independent, MacPherson Strut type
Rack and Pinion
62.5 in. (1,590 mm)
76.4 in. (1,940 mm)
119.8 in. (3,045 mm)
2,050 lbs. (930 kg)
85.8 in. (2,180 mm)
Turning Radius
14.1 ft. (4.3 m)
Towing Capacity
1,300 lbs. (590 kg)
Ground Clearance
12.5 in. (318 mm)
Payload Capacity
1,598 lbs. (725 kg)
Max Rear Wheel Tread
48.3 in. (1,228 mm)
Max Front Wheel Tread
49.7 in. (1,262 mm)
cargo bed
Bed Capacity
1,102 lbs. (500 kg)
Length X Width X Depth
43.7 x 58.2 x 11.5 in. (1,110 x 1,480 x 293 mm)
equipment & panel

Standard Equipment

  • K9 Orange or Green
  • Bench Seat (3 adults)
  • 3 Seat Belts (3 shoulder)
  • Hydraulic Power Steering
  • Manual Dump Box Actuation with Gas Spring Assist
  • Instrument Cluster
  • Front Hitch Receiver
  • Rear Hitch Receiver
  • Brush Guard
  • Cup Holders
  • Storage Compartment
  • Safety Lamps
  • Skid Plates
  • Floot Mat
  • Suspension Dust Guards
  • Muffler Spark Arrester
  • Parking Brake Buzzer

Optional Equipment

  • Fog Lamp Kit
  • Working Lamp Kit
  • Headrest Kit
  • Side View Mirror Kit
  • License Plate Kit
  • Beacon Light Wire Kit
  • Back-Up Alarm System Kit
  • Sun Canopy Kit
  • Glass Windshield Kit with Wiper
  • Winch Kit
  • Hydraulic Dumping Kit
  • Remote Hydraulic Kit
  • Hand Throttle Kit
  • Rear Screen Kit

Instrument Panel

  • Speedometer
  • Hour Meter
  • Fuel Gauge
  • Coolant Temperature Gauge
  • Turn Signal Indicators
