ID # 27682705

kioti K9 2400 Cab

Call for Price
  • Speed-Sensitive, Electric Power Steering
  • 2WD/4WD
  • 12.5” ground clearance
  • 1,750 lbs. payload capacity
  • 1,300 lbs. towing capacity
  • Independent wishbone type front and rear suspension
  • Four wheel hydraulic disc brakes

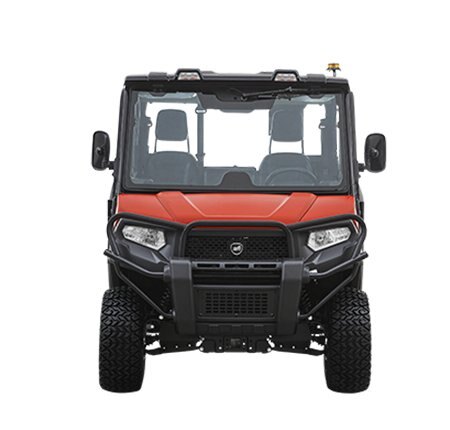

K9 2400 Cab
Sale Type
Transmission Type
2 speed CVT
Engine Gross Power
24.5 hp (18.3 kW)
kioti K9 2400 Cab Power Steering & Tilt Wheel Standard
Electric speed-sensitive power steering gives operators precise control over the K9 while prioritizing comfort and ease of use. The steering
wheel tilts with the simple push of a lever, allowing for easy adjustment.

kioti K9 2400 Cab Factory-Installed Climate Controlled Cab

Provides comfort plus noise and vibration reduction. This roomy cab can accommodate up to 3 passengers with ample leg room for all. Seat belts provide safety, while the contoured bench seat and standard rubber floor mat ensure everyone rides in comfort.

kioti K9 2400 Cab Heating & Air Conditioning

Heating and air conditioning with center air vents and easy-to-use controls keep operators working in comfort all year long.

kioti K9 2400 Cab Pre-Wired Audio Den

Sound deadening headliner combined the with integrated audio speakers and optional Bluetooth radio gives operators the option to enjoy music.

kioti K9 2400 Cab Durable Polymer Doors

The cab model comes standard with durable polymer doors to withstand the demands of everyday use.

kioti K9 2400 Cab HVAC Easy Service Access

The K9 Cab has a convenient front compartment, with readily available HVAC service and access points.

kioti K9 2400 Cab Tilt-Opening Windshield

Forward tilt-opening laminated windshield can be opened to allow for ventilation during travel. Wiper comes standard and improves operator visibility in adverse weather conditions.

kioti K9 2400 Cab Warning Beacon Light

Roof-mounted safety warning beacon to ensure optimized visibility of the K9 and operator while on the jobsite.

kioti K9 2400 Cab Front Work Lights

Integrated roof-mounted front work lights come standard, allowing the work to get done, day or night.

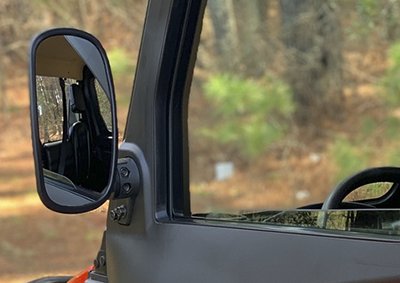

kioti K9 2400 Cab Side View Mirrors

Fully-adjustable side view mirrors help to maximize the operator's field of view while monitoring their cargo load.

kioti K9 2400 Cab Selectable 2WD / 4WD

Selectable 2WD / 4WD allows the operator to tailor the K9 Cab's performance to the terrain.

kioti K9 2400 Cab 3-Cylinder 24 hp Diesel Engine

The Tier 4 compliant diesel engine provides powerful performance and fuel efficiency. The K9 Series 24.5 hp engine offers a maximum travelling speed of 31 mph.

Engine Type
4-Cycle Diesel, 3 Cyl., In-line Vertical, Water-Cooled
61.45 cu. in. (1,007 cc)
Engine Gross
24.5 hp (18.3 kW)
Engine Model
Rated Revolution
3,200 rpm
Fuel Tank Capacity
9.8 gal. (37 ℓ)
drive train
Belt CVT
Front/Rear Hydraulic Disc
Gear Range
Low, High, Neutral, Reverse
Ground Speed
0-31 mph (0-50 km/h)
Rear Suspension
Independent, Double A-Arm (Wishbone type)
Front Suspension
Independent, MacPherson Strut type
Rack and Pinion
65.6 in. (1,640 mm)
78.4 in. (1,990 mm)
119.8 in. (3,045 mm)
2,050 lbs. (930 kg)
85.8 in. (2,180 mm)
Turning Radius
15.1 ft. (4.6 m)
Towing Capacity
1,300 lbs. (590 kg)
Ground Clearance
12.5 in. (318 mm)
Payload Capacity
1,750 lbs. (794 kg)
Max Rear Wheel Tread
51.2 in. (1,320 mm)
Max Front Wheel Tread
51.2 in. (1,320 mm)
cargo bed
Bed Capacity
1,102 lbs. (500 kg)
Length X Width X Depth
43.7 x 58.2 x 11.5 in. (1,110 x 1,480 x 293 mm)
equipment & panel

Standard Equipment

  • Front Grill Guard
  • Front Hitch Receiver
  • Safety Lamp Kit
  • Skid Plates
  • Floor Mat
  • Suspension Dust Guards
  • Muffler Spark Arrestor
  • Parking Brake Buzzer
  • Spray-In Bed Liner
  • Air conditioning

Optional Equipment

  • Hydraulic Bed Dump
  • Remote Hydraulic Valve
  • Hand Throttle
  • Fog Lamp
  • Working Lamp
  • License Plate Bracket
  • Beacon Light Wiring
  • Back-Up Alarm
  • Aluminum Wheels
  • Winch
  • Side View Mirror

Instrument Panel

  • Speedometer
  • Hour Meter
  • Fuel Gauge
  • Coolant Temperature Gauge
  • Turn Signal Indicators
  • Tachometer
  • Tilt Steering Wheel
